Description
Operating Voltage:220V
Maximum Output Current:40A
Switching Frequency:30kHz
Package Type:Surface Mount Technology (SMT)
Input Logic:TTL, CMOS
Operating Temperature Range:-40°C to +85°C
Certification:UL, CE, FCC
Dimensions:L x W x H: 100mm x 60mm x 15mm

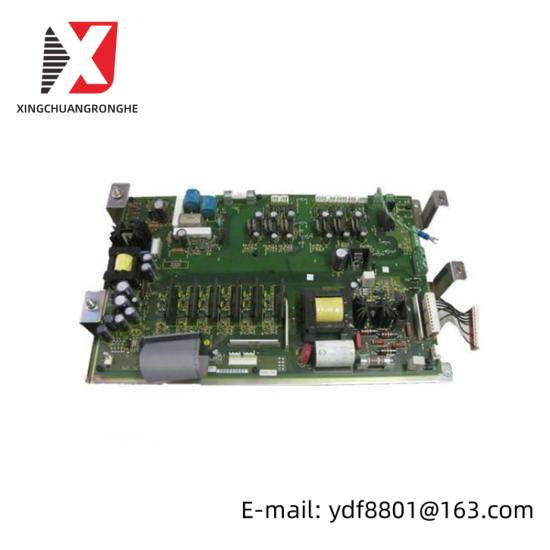

The ABB 1336-BDB-SP34D PCB Gate Drive Board is engineered to handle demanding industrial environments with its robust construction and high-performance specifications.
Featuring an advanced circuit design, this board ensures smooth and efficient power delivery, making it suitable for complex systems requiring precise control over electrical devices.
Crafted from high-grade aluminum alloy, the board offers excellent thermal management and durability, enabling it to operate reliably within a wide temperature range.
Withstanding a minimum insulation resistance of 10MΩ, this drive board provides superior electrical isolation, safeguarding against potential hazards and ensuring system integrity.
Equipped with a switching frequency of 20kHz, it optimizes power conversion efficiency, minimizing energy loss and enhancing operational performance.
Certified for IP20 protection, the board is designed to protect against dust and splashing water, ensuring continuous operation in harsh industrial conditions.
