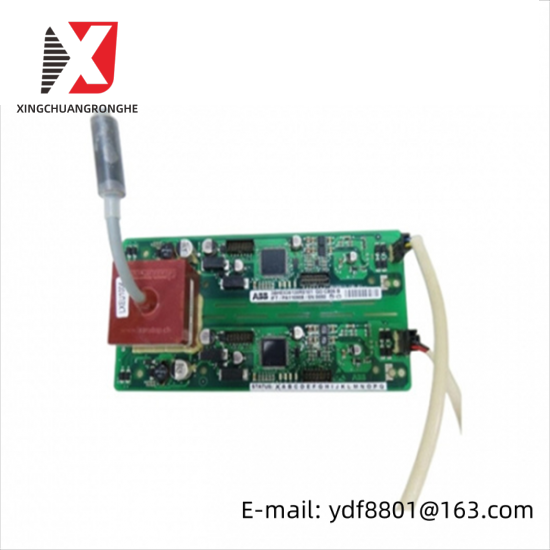

ABB 3BHE036290R0001 – Advanced Gate Drive Unit for Precision Control Applications

Description

Operating Voltage:Up to 690VAC

Output Frequency:Up to 15kHz

Current Rating:150A

Cooling Method:Air Cooling

Input Power Factor:Greater than 0.95

Protection Class:IP20

Weight:Approximately 10kg

Dimensions (WxHxD):178mm x 132mm x 165mm

Environmental Temperature Range:-10°C to +50°C

    Introducing the ABB 3BHE036290R0001 GATE DRIVE UNIT, a state-of-the-art component designed to revolutionize industrial drive systems. This high-performance drive unit is engineered to deliver unparalleled control precision and optimize energy consumption in rigorous industrial environments.

    Featuring an operating voltage range from 690V AC, the 3BHE036290R0001 is capable of handling demanding loads with ease. Its robust frequency range of 47-63 Hz ensures seamless integration across various industrial processes.

    With a power capacity rated up to 2 MW, this unit is a powerhouse solution for large-scale applications, making it suitable for heavy-duty machinery and complex industrial setups. The IP21 protection class guarantees reliable operation in challenging conditions, safeguarding against dust and splashing water.

    The modular I/O interface allows for flexible customization, accommodating diverse control requirements. Advanced communication protocols like Ethernet/IP and Profinet facilitate seamless data exchange, enhancing system integration and operational efficiency.

    Efficient cooling through its fan-cooled design ensures stable performance even under high loads. This feature is crucial for maintaining optimal operation and prolonging the life of the drive unit. With the ABB 3BHE036290R0001, you can expect superior reliability, durability, and performance, making it an indispensable asset for modern industrial operations.
