Description
Model Number:3HAA3563-AMA/0
Type:Serial Measurement Board
Compatibility:ABB Automation Systems
Input Channels:4 Analog Input Channels
Output Channels:1 Analog Output Channel
Sampling Rate:Up to 10 kHz
Signal Types Supported:Voltage, Current, Resistance
Power Consumption:Less than 5W
Operating Temperature:-20°C to +60°C
Storage Temperature:-40°C to +85°C
Dimensions (W x D x H):175mm x 175mm x 30mm
Weight:0.5kg

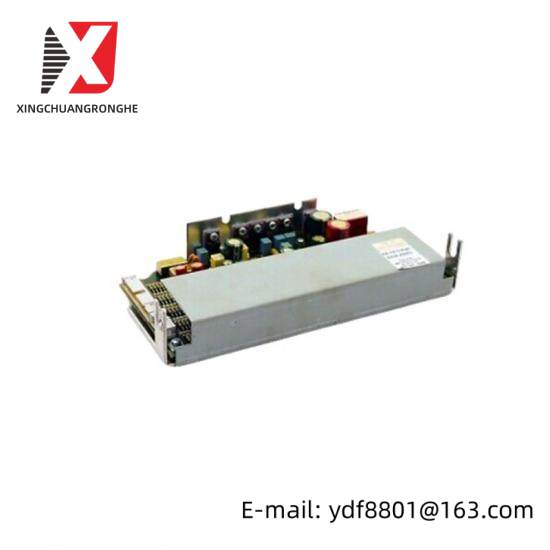

The ABB 3HAA3563-AMA/0 Serial Measurement Board is a high-performance component specifically engineered for integration into complex industrial control systems. Its compact design ensures efficient utilization of space, while its robust build withstands harsh environmental conditions typically encountered in manufacturing environments.
This board is equipped with advanced signal processing capabilities, allowing for accurate and reliable data acquisition across a wide range of industrial signals. It supports both current and voltage inputs, making it versatile for various applications within the process control domain.
Featuring an industry-standard RS-485 interface, the ABB 3HAA3563-AMA/0 facilitates seamless communication with other control system components, ensuring smooth data flow and enhanced operational efficiency. Its 12-bit Analog-to-Digital Converter (ADC) ensures high-resolution data conversion, crucial for precise measurement and analysis.
Engineered with a focus on safety and compliance, this module adheres to the stringent IEC 61131-2 standards for programmable automation controllers. It is CE certified, guaranteeing its suitability for use in European and many international markets.
For optimal performance, the ABB 3HAA3563-AMA/0 requires minimal power consumption, making it an energy-efficient choice for both new installations and retrofit scenarios. Its compatibility with a broad range of industrial protocols ensures easy integration into existing control systems, minimizing downtime and maximizing productivity.
