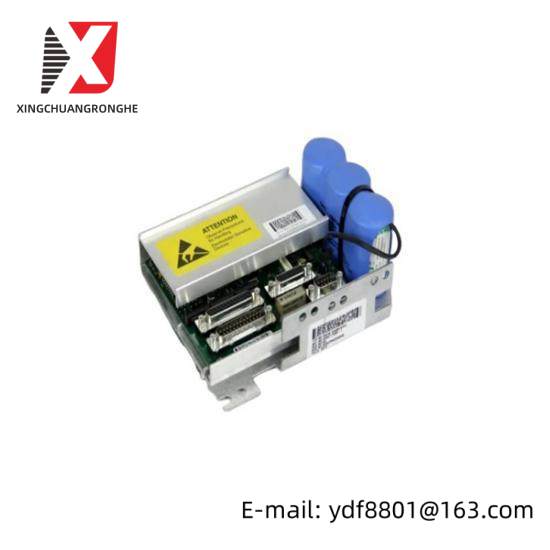

ABB 3HAC173961 DSQC562 Serial Measurement Board

Description

Model Number:3HAC173961

Serial Number:DSQC562

Operating System Compatibility:Windows, Linux

Data Acquisition Speed:10 kHz

Input Channels:8 analog inputs

Output Channels:4 analog outputs

Analog Input Range:-10V to +10V

Analog Output Range:0V to +10V

Power Supply:24V DC

Dimensions:120mm x 100mm x 30mm

Weight:0.25kg

Environmental Rating:IP20

Certifications:CE, UL

    The ABB 3HAC173961 DSQC562 Serial Measurement Board is engineered for seamless integration into advanced industrial control systems, offering unparalleled precision and reliability.

    With its robust RS-485 interface, this board supports high-speed data transfer rates up to 1 Mbps, ensuring real-time monitoring and control in complex industrial environments.

    Equipped with two high-precision analog inputs and eight digital inputs/outputs, it provides comprehensive data acquisition capabilities, enabling accurate measurement and efficient data processing.

    Operated within an extended temperature range from -20°C to +55°C, the DSQC562 is built to withstand harsh industrial conditions, ensuring reliable performance in diverse applications.

    Featuring support for Modbus RTU communication protocol, this board facilitates seamless communication with various industrial devices, enhancing system interoperability and scalability.
