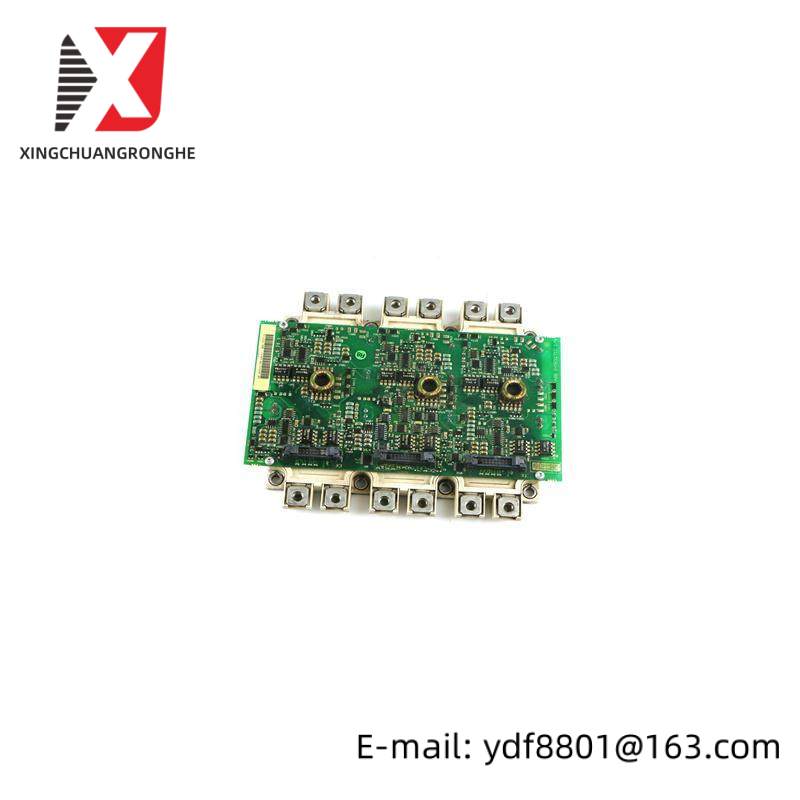

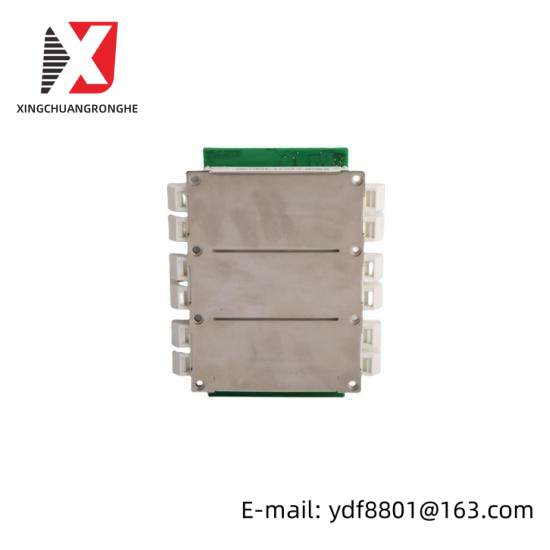

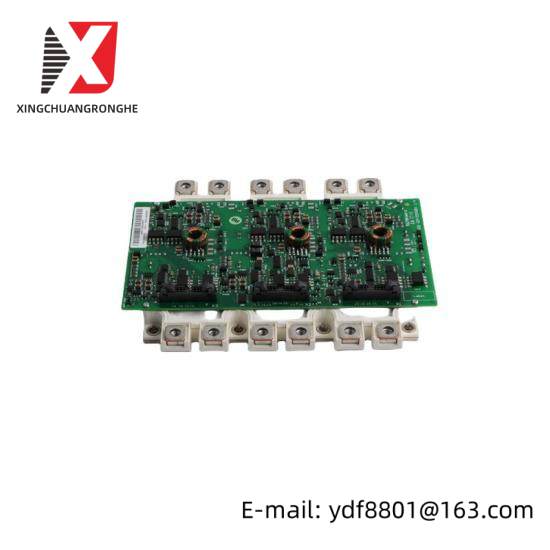

ABB AGDR-61C FS450R17KE3 IGBT MODULE

Description

Operating Voltage:Up to 1700V DC

Output Current:450A

Maximum Power Rating:647 kW

Frequency Range:Up to 12 kHz

Module Size:Compact, optimized for space-saving applications

Material Composition:High-grade silicon carbide (SiC) for superior thermal conductivity

Cooling Method:Water-cooled for enhanced heat dissipation

Insulation Class:Class H (180°C)

    The ABB AGDR-61C FS450R17KE3 IGBT MODULE is engineered with cutting-edge technology, offering superior reliability and efficiency in power management systems. Its advanced design ensures minimal heat dissipation, allowing for optimal performance even under high load conditions.

    This IGBT module is ideal for integration into renewable energy solutions, electric vehicle charging stations, and industrial automation processes where precise voltage and current control are critical. The robust insulation class F ensures durability against high temperatures, making it suitable for extreme environments.

    Equipped with a water-cooling system, the AGDR-61C FS450R17KE3 provides enhanced thermal management capabilities, reducing the risk of overheating and prolonging the lifespan of the module. This feature is particularly beneficial in continuous operation scenarios where thermal stability is paramount.

    The inclusion of a 20kHz switching frequency enables rapid and precise adjustments, optimizing energy consumption and improving system responsiveness. The high voltage rating of 1700V ensures compatibility with high-voltage applications without compromising safety.

    Designed for ease of installation and maintenance, the ABB AGDR-61C FS450R17KE3 comes with standard mounting holes and an intuitive user guide. It also benefits from ABB’s comprehensive support network, providing access to technical assistance and replacement parts when needed.
