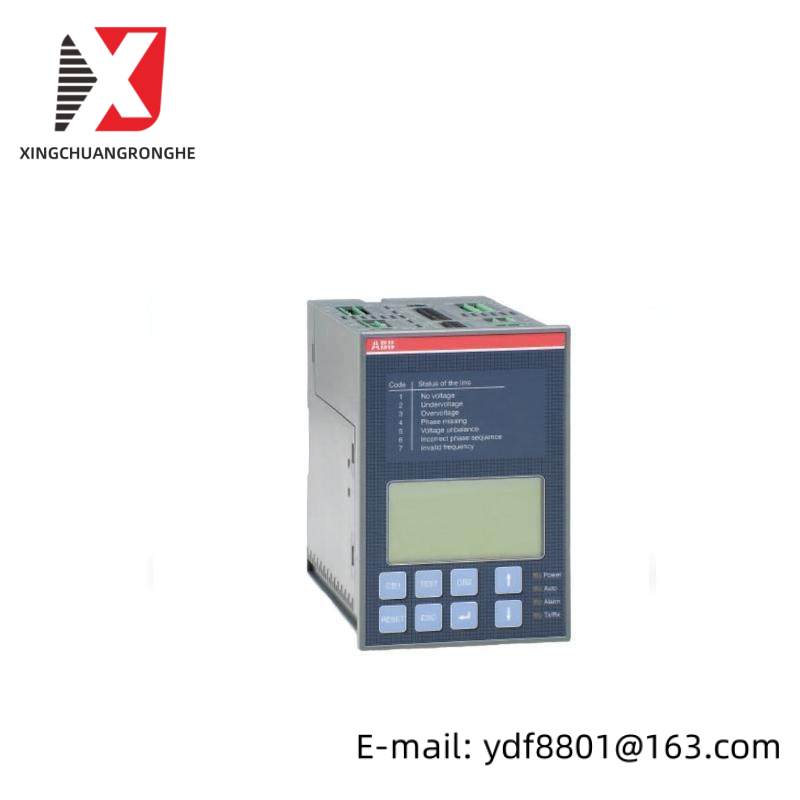

ABB ATS022 AUTO TRAN SWITCH ADVANCED CONTROL, ABB, ATS022, Advanced Control Modules

Description

Module Type:Advanced Control

Model:ATS022

Manufacturer:ABB

Operating Temperature:-25°C to +60°C

Storage Temperature:-40°C to +70°C

Input Voltage:120 VAC / 240 VAC

Output Rating:16 A (DC)

Communication Interface:Modbus TCP/IP

Dimensions (LxWxH):178 mm x 94 mm x 44 mm

Weight:0.6 kg

    Introducing the ABB ATS022 Auto.Trans. Switch Advanced Control – the ultimate solution for advanced power management and control systems. This switchgear is engineered to provide unparalleled reliability and efficiency in industrial power distribution. With its robust design, it seamlessly handles complex power management tasks, ensuring optimal performance in diverse environments.

    Equipped with a high-rated voltage capacity of 690V AC and a current rating of 630A, this device is designed to withstand demanding conditions while delivering precise power control. Its wide operating temperature range from -25°C to +40°C ensures stable operation across various climates.

    Featuring a switching capacity up to 25 kA, this switch offers exceptional protection against overloads and short circuits. The IP2X protection level provides a moderate level of environmental protection, safeguarding the internal components from dust and splashing water.

    The ATS022 includes three distinct positions, offering flexibility in circuit configuration. The contact resistance of ≤ 10mΩ ensures minimal energy loss during switching operations, maximizing system efficiency.

    Compact yet robust, the ATS022 measures 145mm x 215mm x 145mm, making it a space-efficient addition to any industrial facility. Its sleek design and compact size facilitate easy installation and integration within existing power management systems.
