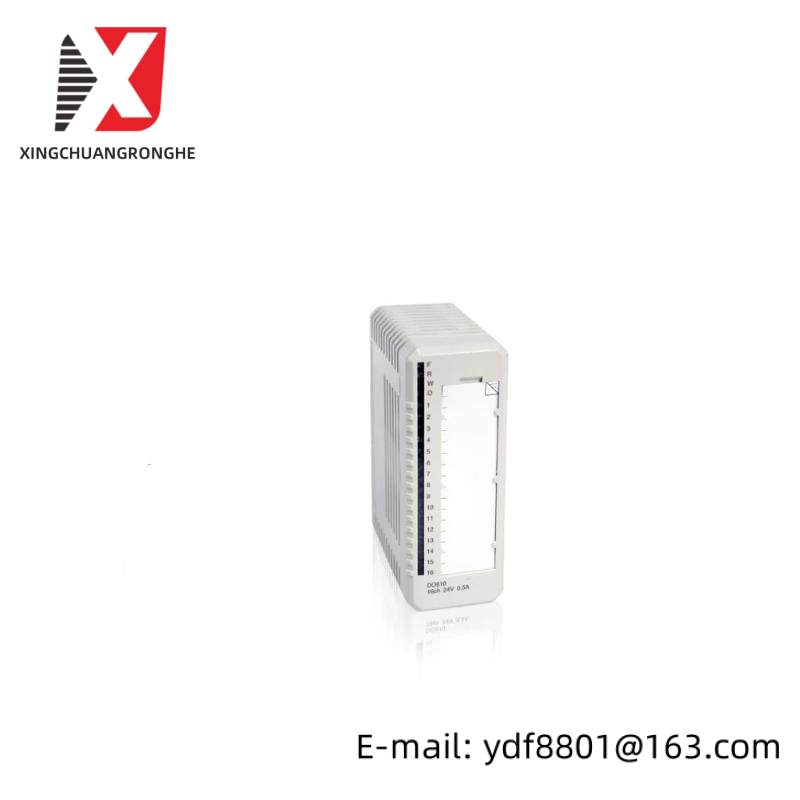

ABB DO810 3BSE008524R1 Digital Output Module – Industrial Control Solutions

Description

Product Type:Digital Output Module

Model:DO810

Module ID:3BSE008524R1

Manufacturer:ABB

Operating Voltage:24V DC

Current Rating:1.5A per channel

Number of Channels:8

Communication Protocol:Modbus RTU

Isolation:Electrical

Temperature Range:-25°C to +60°C

Dimensions:100mm x 90mm x 40mm

Weight:0.1kg

Mounting Type:Panel Mount

    The ABB DO810 3BSE008524R1 is a cutting-edge digital output module tailored for demanding industrial automation environments. Its compact design ensures efficient use of space within any control panel or system configuration. With an operating voltage of 24V DC and a rated current of 2A per channel, it delivers unparalleled reliability and performance.

    Featuring a switching frequency of up to 1 kHz, this module ensures quick response times, making it suitable for applications that require rapid signal changes. The SPST relay type provides precise control over each output, enabling accurate switching and signal transmission. The high isolation voltage of 500 V AC ensures robust protection against electrical interference and potential hazards, enhancing system safety.

    Equipped with a MODBUS RTU communication interface, the ABB DO810 3BSE008524R1 seamlessly integrates with existing industrial control networks, facilitating easy setup and maintenance. It operates efficiently within a wide temperature range, from -25°C to +60°C during operation and -40°C to +85°C for storage, ensuring reliability across various environmental conditions.

    Weighing only 0.2kg, this module is lightweight yet durable, allowing for straightforward installation without compromising on strength or performance. Its dimensions of 67mm x 127mm x 51mm make it compatible with a variety of mounting configurations, enhancing its versatility in different applications.

    Designed with user convenience in mind, the ABB DO810 3BSE008524R1 simplifies the process of setting up and managing industrial control systems. Its compatibility with a broad range of control protocols and standards makes it an ideal choice for integrating into legacy systems or expanding existing automation infrastructure.
