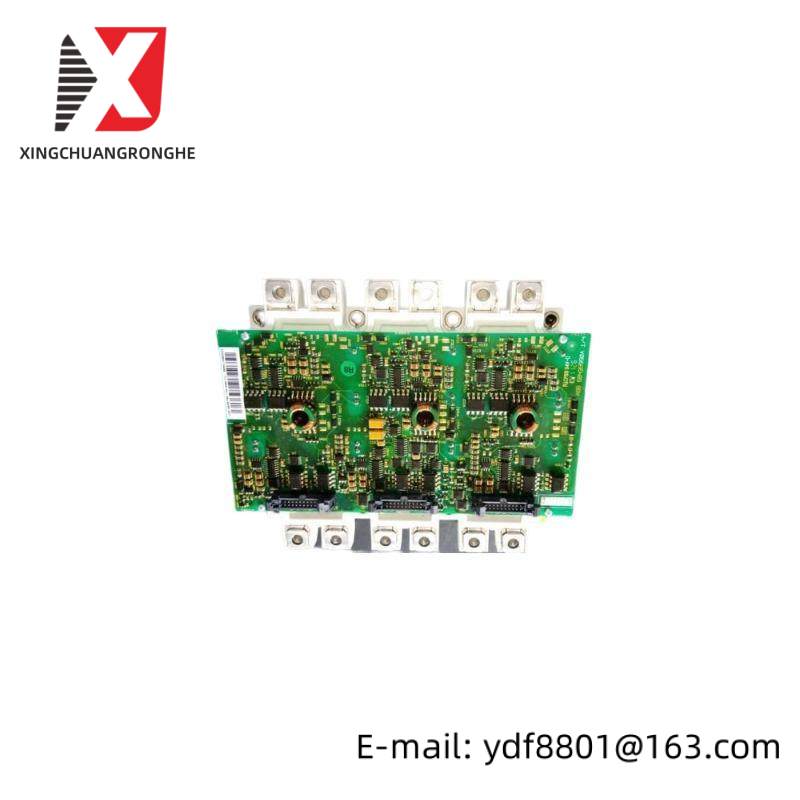

ABB FS225R12KE3/AGDR-71C, IGBT Module for Advanced Industrial Control

Description

Manufacturer:ABB

Model Number:FS225R12KE3/AGDR-71C

Module Type:IGBT

Power Rating (kW):225

Peak Current (A):1200

Operating Temperature Range:-40°C to +150°C

Cooling Method:强迫风冷

Insulation Resistance (MΩ):≥500

Certification:CE, UL

Dimensions (WxHxD):300mm x 200mm x 120mm

Weight (kg):10.5

Operating Voltage (V):DC 600V to DC 1700V

Operating Frequency (kHz):0 to 150kHz

Control Interface:RS485, CANopen

    The ABB FS225R12KE3/AGDR-71C IGBT Module is engineered to meet the stringent requirements of today’s demanding industrial automation environments. It leverages ABB’s advanced semiconductor technology to deliver exceptional performance and reliability, making it an ideal choice for complex industrial control systems.

    Featuring a robust design with enhanced thermal management capabilities, this IGBT module ensures stable operation even under extreme conditions. Its high-efficiency switching characteristics significantly reduce energy consumption, contributing to sustainable industrial operations.

    The module is compatible with a wide array of control systems, facilitating seamless integration into existing industrial infrastructure. Its compact size and rugged construction enable efficient space utilization and robust durability, essential for long-term reliability in industrial settings.

    With its high current rating and high-frequency switching capabilities, the ABB FS225R12KE3/AGDR-71C IGBT Module is capable of handling heavy-duty applications with ease. It supports precise control over motors, drives, and other critical components, enhancing overall system performance and efficiency.

    Designed with safety in mind, this IGBT module complies with international safety standards and guidelines. Its built-in protection features safeguard against common failure modes, ensuring the continuous operation of industrial systems without interruption.
