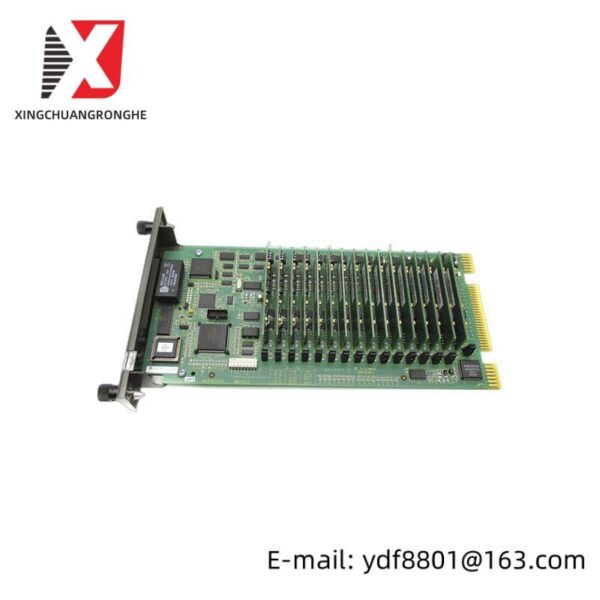

ABB IMASI23 – High-Performance Analog Input Module for Industrial Control Solutions

Description

Model Number:IMASI23

Type:Analog Input Module

Manufacturer:ABB

Input Channels:16

Sampling Rate:1 kHz

Range:-10V to +10V

Accuracy:+/- 0.05%

Power Consumption:5 W

Operating Temperature:-20°C to +60°C

Storage Temperature:-40°C to +85°C

Dimensions:144 mm x 100 mm x 93 mm

Weight:0.6 kg

    The ABB IMASI23 Analog Input Module is an advanced solution for integrating precision data acquisition capabilities into complex industrial automation systems. Designed for versatility and reliability, this module ensures accurate measurements across a wide range of applications, from manufacturing lines to process control environments.

    Featuring a broad input range compatible with 0-20mA or 4-20mA signals, the IMASI23 offers 16 channels capable of handling multiple inputs simultaneously, enhancing efficiency in multi-sensor setups.

    With a high sampling rate of up to 1 kHz, the module ensures real-time data processing, making it ideal for systems requiring fast response times and dynamic monitoring.

    The robust design includes an IP65/IP67 enclosure rating, ensuring protection against dust and water ingress, even in harsh industrial settings. This, combined with a temperature range of -20°C to +60°C, guarantees reliable operation under varied environmental conditions.

    The connectivity options include Profinet, Ethernet, and RS485 interfaces, enabling seamless integration with various network protocols. The low power consumption of ≤ 5W further optimizes system efficiency without compromising on performance.

    Engineered with precision and reliability in mind, the ABB IMASI23 Analog Input Module stands as a critical component for enhancing operational accuracy and productivity in modern industrial automation landscapes.
