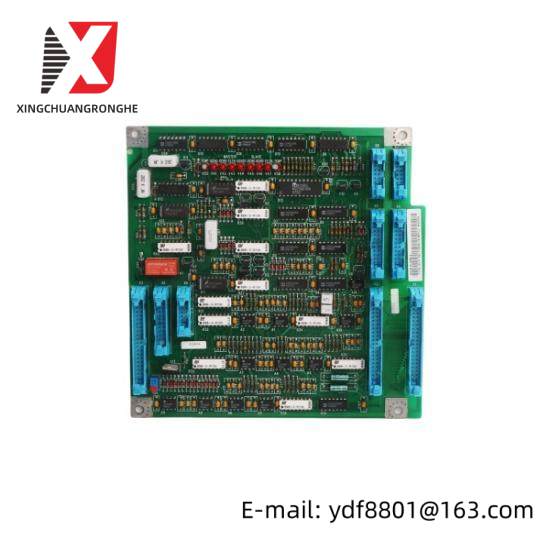

ABB SNAT620PCB, RTD Input Module for Industrial Control Systems

Description

Operating Temperature Range:-40°C to +85°C

Input Resistance:100 ohms

Accuracy:+/-0.5% of full scale

Supply Voltage:DC 12V to 30V

Current Consumption:Less than 20mA

Connection Type:Terminal Block

Material:Aluminum alloy with IP67 protection

    The ABB SNAT620PCB RTD Input Module is engineered for seamless integration into various industrial automation setups, providing accurate temperature measurements across a wide range of applications. Its robust design ensures reliable performance under harsh environmental conditions.

    Featuring an advanced signal processing circuit, the module offers high accuracy and stability, minimizing errors due to external factors such as noise and interference. This precision is crucial for critical industrial processes where temperature control plays a pivotal role.

    The 4-wire connection ensures minimal voltage drop and improved measurement accuracy, making it suitable for applications requiring high precision and long cable runs. The module supports both Pt100 and Pt500 RTD sensors, enhancing its versatility across different industries.

    Compact and lightweight, the ABB SNAT620PCB is designed for easy installation in space-constrained environments. It is compatible with a wide range of PLCs and other control systems, facilitating quick deployment and integration.

    With its built-in self-diagnostic capabilities, the module can continuously monitor its operation status, alerting operators to any potential issues before they affect system performance. This proactive approach helps maintain optimal system reliability and uptime, crucial for continuous operations in industrial settings.
