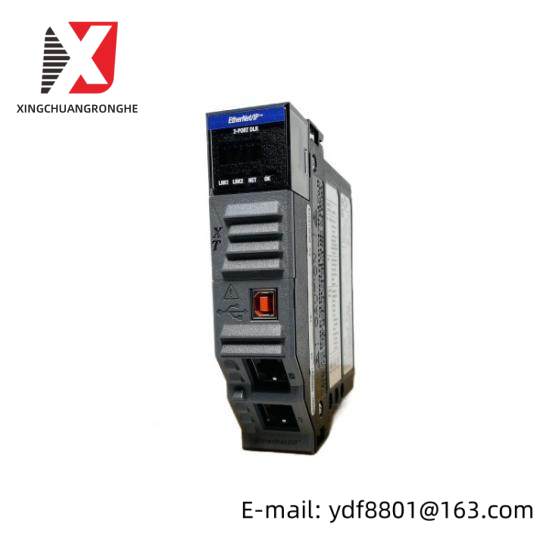

Advanced 1756-EN2TRXT Logix XT Ethernet Module: Enhancing Industrial Automation Efficiency

Description

Model Type:High Capacity IP Module

Model Number:1756-EN2TRXT

Manufacturer(s):Allen-Bradley

ControlLogix Communication Module:Yes

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP Bridge

Enclosure:Open Type

Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair

Temperature Rating:0 – 60 °C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet

USB Port:Not Included

    The Allen-Bradley 1756-EN2TRXT Logix XT EtherNet Module is designed for high-capacity data exchange, ensuring robust performance in demanding industrial settings.

    Featuring an Ethernet/IP bridge, this module enables seamless integration between ControlLogix systems and external networks, enhancing operational flexibility and control.

    Engineered with a durable chassis mounting design, it ensures reliable operation under varying environmental conditions, supporting efficient system uptime.

    With its open type enclosure and support for shielded or unshielded twisted pair cables, the module offers versatile installation options and improved signal integrity.

    Equipped with an impressive power dissipation capacity of 5.1 W, the module efficiently manages power consumption, reducing energy costs and environmental impact.

    Adhering to strict isolation standards, it ensures safety and prevents interference, safeguarding critical data and system operations.
