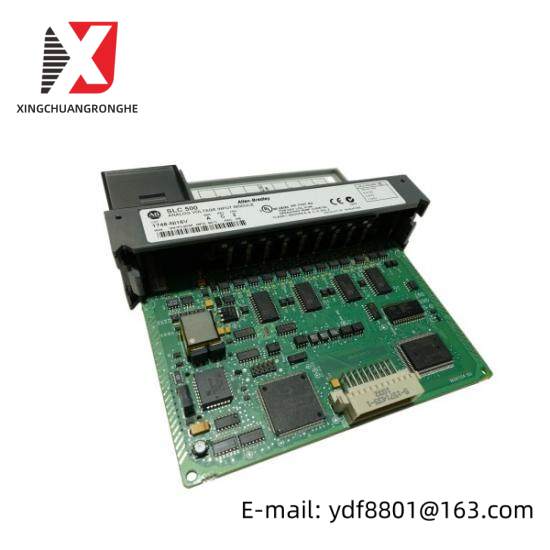

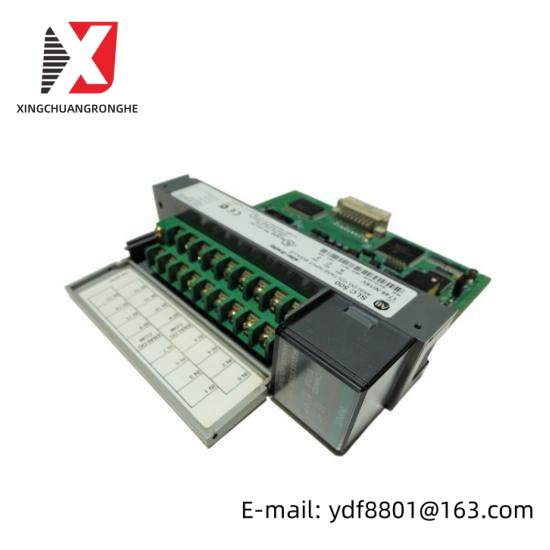

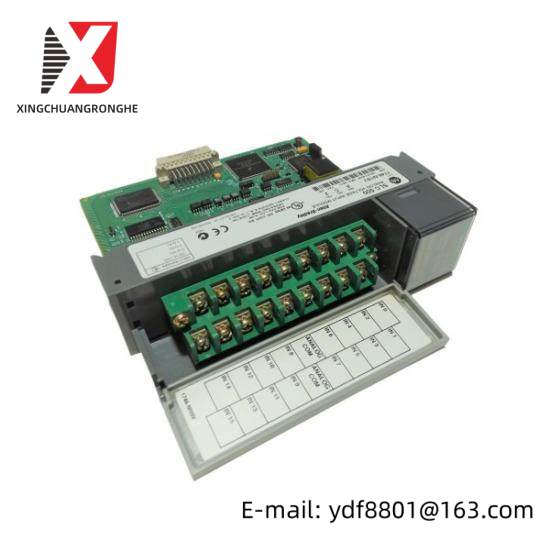

Allen Bradley 1746-NI16V: High Resolution Analog Input Module

Description

Number of Channels:16

Common Mode Voltage Range:-20 to 20 V

Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (max)

Input Range:-20 to 20 mA

Absolute Input Current:-30 to 30 mA (max)

Overvoltage Protection:7.5 VAC RMS

Input Range (DC):-10 to 10 VDC – 1 LSB

Current Rating:Backplane: 35 MA at 5 V, 85 MA at 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

Power Rating:Backplane: 2.425 W

Enclosure Type:Open Type

Module Type:High Resolution Analog Input Module

    The Allen Bradley 1746-NI16V offers exceptional performance with its high-resolution capabilities, enabling accurate readings even in challenging industrial environments. Its robust design ensures reliable operation over a wide range of temperatures and voltage conditions.

    This module is equipped with advanced signal processing technology, which significantly enhances its ability to filter out noise, ensuring that the acquired data is as precise as possible. This feature is particularly advantageous in applications where minute changes in process variables can impact product quality.

    The Allen Bradley 1746-NI16V is compatible with various communication protocols including ControlNet, DeviceNet, and Universal Remote I/O links. This compatibility allows seamless integration into existing industrial networks, streamlining the setup process and reducing installation time.

    With its compact size and efficient power consumption, the module is suitable for both new installations and retrofits. The open-type enclosure provides easy access for maintenance and modification, while the built-in isolation ensures protection against electrical interference, safeguarding critical data integrity.

    Designed for durability, the Allen Bradley 1746-NI16V withstands harsh industrial environments, making it a reliable choice for manufacturing, chemical processing, and other industries where precision and reliability are paramount. Its modular design also facilitates scalability, allowing for customization to meet specific application requirements.
