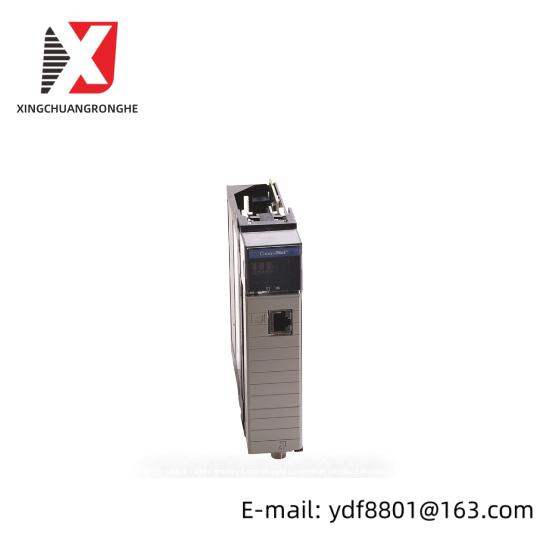

Allen-Bradley 1756-CNB/D ControlLogix ControlNet Bridge Module

Description

Model Type:Bridge Module

Manufacturer:Allen-Bradley

Model Number:1756-CNBD

Communication Protocol:ControlNet

Amperage Rating:Drawn: 970 MA at 5.1 VDC, 1.7 MA at 24 VDC

Isolation:30 V (Continuous)

Rfi Suppression:Radiated: 10 V/M with 1 KHZ sine-wave 80% AM from 80 – 2000 MHz

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Enclosure Type:Open Type

Connection Compatibility:Compliant shielded or unshielded twisted pair

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

    Engineered for seamless integration within ControlLogix platforms, the AB 1756-CNB/D ControlNet Bridge Module facilitates the expansion of network capabilities, supporting a wide array of industrial applications.

    Offering robust communication performance, this module ensures reliable data exchange between ControlLogix controllers and ControlNet devices, boosting system responsiveness and efficiency.

    Crafted with precision and reliability in mind, the AB 1756-CNB/D is designed to withstand harsh industrial environments, providing consistent operation under varying conditions.

    Featuring a compact yet durable design, it is easy to install and maintain, minimizing downtime and simplifying the management of complex automation systems.

    Backed by the AB brand’s commitment to quality and innovation, the 1756-CNB/D ControlNet Bridge Module is an indispensable component for modern industrial automation, offering unparalleled performance and reliability.
