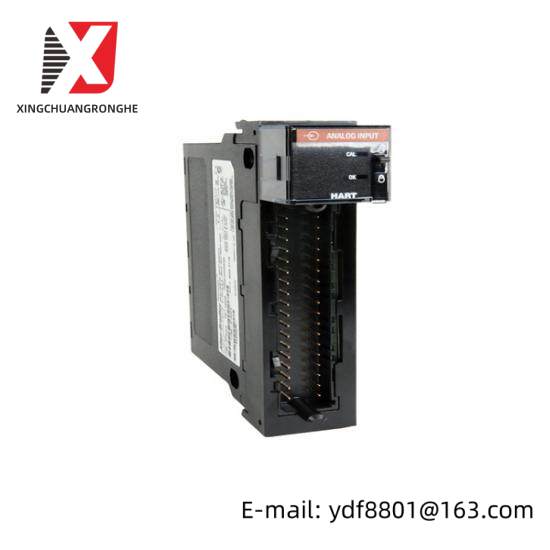

Allen Bradley 1756-IF16H ControlLogix Analog Input Module: Advanced Signal Acquisition for Industrial Automation

Description

Manufacturer:Allen Bradley

Model:1756-IF16H

Module Type:Analog Input

Channels:16

Differential Voltage/CURRENT Input:Yes

Data Formats:Choice of three

Input Ranges:Multiple current and voltage options

Module Filter:Standard

Real-time Sampling:Yes

Fault Detection:Under range, over range

Process Alarms:Rate, wire-off

Communication Protocol:HART

Power Consumption:6.2 Watts

Temperature Range:0 – 60 DEG C

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Connection:Ethernet/IP Bridge

Ethernet Compliance:802.3

USB Port:Included

Power Supply:3 MA At 24 VDC

Mounting:Chassis

Communication Speed:10/100 MBPS

Enclosure Type:Open Type

Isolation:30 V Continuous

    The Allen-Bradley 1756-IF16H is engineered for seamless integration into complex industrial control systems, offering high accuracy and reliability in data acquisition.

    Each channel is equipped with a robust filter, ensuring clean signal processing even under challenging environmental conditions.

    With its versatile input range selection, this module caters to diverse applications requiring either differential voltage or current inputs.

    Supporting multiple data formats, users can customize their system configuration to meet specific needs, enhancing flexibility and efficiency.

    Equipped with an Ethernet/IP Bridge, the module facilitates fast and reliable communication, optimizing data flow within industrial networks.

    Designed for durability, the open-type enclosure ensures longevity in harsh industrial settings, while the continuous isolation voltage safeguards against electrical interference.
