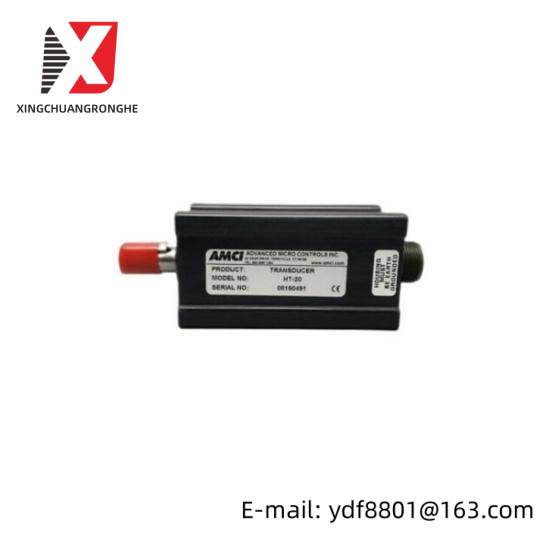

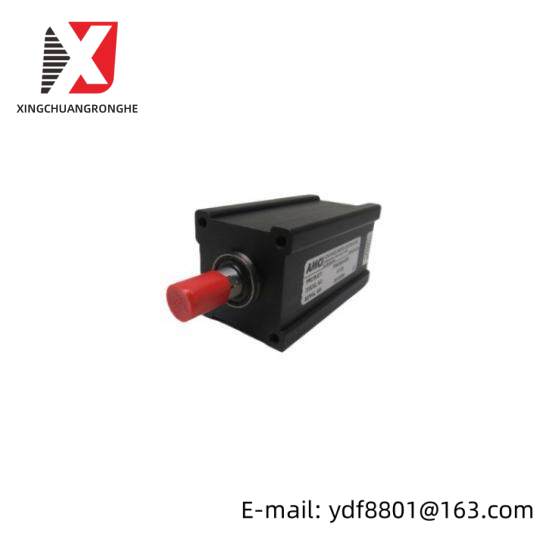

AMCI HT-20 Single-Turn Resolver Transducer, High Precision Position Sensing Solution

Description

Model:HT-20

Type:Single-turn resolver

Operating Range:0 to 360 degrees

Resolution:1 arc-minute

Operating Temperature:-40°C to +125°C

Output Signal:4-20mA DC

Power Consumption:Max. 50mA @ 24VDC

Enclosure Rating:IP67

Connection:M12 x 1.0 pitch connector

Mounting:Panel mount

Accuracy:+/- 0.05% of full scale

Environmental Resistance:Dustproof, waterproof

    The AMCI HT-20 Single-Turn Resolver Transducer boasts an exceptional resolution of 0.001 degrees, ensuring precise angular position measurement even in the most challenging environments.

    Featuring a remarkable accuracy of +/- 0.02% of reading or +/- 0.02 degrees, this sensor delivers unparalleled reliability and consistency.

    Operable within an extensive temperature range from -40°C to +105°C (-40°F to +221°F), it withstands extreme conditions without compromising performance.

    With its versatile input voltage of DC 12V to 28V, the HT-20 is compatible with a wide array of power sources, making it adaptable to various industrial setups.

    Equipped with a 10-bit digital output signal, the transducer ensures accurate data transmission, crucial for real-time monitoring and control systems.

    The M12 connector design with a 7-pin mating connector facilitates easy installation and maintenance, enhancing operational efficiency.

    Protected by an IP65 enclosure type, this sensor is dustproof and splash-proof, ideal for outdoor or dusty industrial environments.

    Constructed with a stainless steel housing and epoxy sealing, the HT-20 is built to endure harsh conditions, offering a long service life with minimal maintenance requirements.
