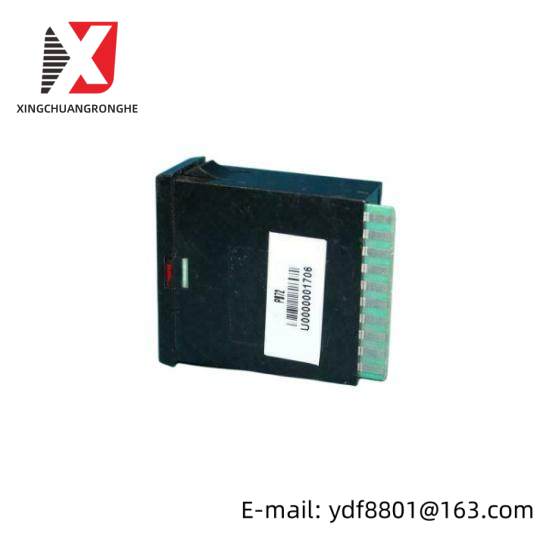

ASAHI KEIKI AP-102-13-11 Micro DC Signal Isolation Transmitter

Description

Signal Input Range:-10V to +10V DC

Signal Output Range:0V to 10V DC

Isolation Voltage:2500Vrms

Power Supply Voltage:10V to 30V DC

Operating Temperature:-20°C to +85°C

Relay Outputs:2

Input Current:≤10mA

Relay Contact Rating:3A/250VAC

Communication Interface:4-20mA

Protection Class:IP20

Dimensions:95mm x 52mm x 27mm

    The ASAHI KEIKI AP-102-13-11 is a high-performance, terminal type micro DC signal isolation transmitter, engineered for seamless integration into a variety of industrial control applications. This compact device ensures reliable and accurate data transmission, crucial for maintaining operational efficiency and precision.

    Equipped with optical isolation technology, the transmitter effectively prevents interference and enhances system reliability, even under harsh environmental conditions. It supports both 0 to 10V and 4 to 20mA output ranges, offering flexibility in connecting to different types of sensors and actuators.

    With an input range of -20 to +60V, it can handle a wide variety of signals without degradation or distortion. Its ±0.1% accuracy ensures minimal error in data conversion, making it ideal for critical applications where precision is paramount.

    Operating within a temperature range of -20°C to +70°C, this transmitter is designed to withstand extreme environments commonly encountered in industrial settings. Additionally, its storage temperature capability of -40°C to +85°C allows for robust performance in various stages of deployment.

    The ASAHI KEIKI AP-102-13-11 consumes a maximum power of 1W, ensuring energy efficiency. It accepts a supply voltage of DC 9 to 36V, providing versatility in powering the device from diverse sources. Measuring just 32mm x 54mm x 33mm, the transmitter’s compact size facilitates easy installation in space-constrained areas.

    Weighing only 45g, it is lightweight and portable, making it suitable for both fixed installations and portable monitoring systems. Its combination of size, weight, and performance makes the ASAHI KEIKI AP-102-13-11 an indispensable component in modern industrial automation.
