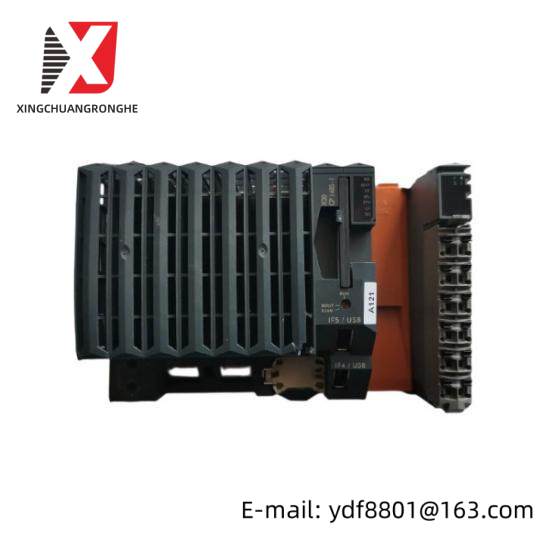

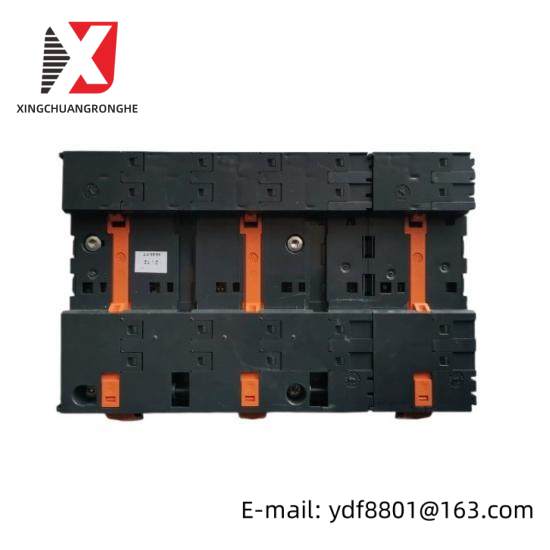

B&R X20CP1485 CPU Module – Advanced Industrial Control Solution

Description

Product Type:CPU Module

Model Designation:X20CP1485

Processor Architecture:Intel x86-based

Clock Speed:100 MHz

Onboard Interfaces:1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2), 2x USB, 1x X2X Link

System Module:Fanless design

I/O Status Indicators:[“CPU function”,”Overtemperature”,”Ethernet”,”POWERLINK”,”CompactFlash”,”Battery”]

Power Consumption:Internal I/O: 0.6 W

Input Voltage Range:24 VDC -15% / +20%

Input Current:Max. 2.2 A

Nominal Output Power:7 W

RAM Capacity:32 MB SDRAM

CompactFlash Memory:Removable application storage

Technology Used:High-speed, low-power consumption microcontroller

    Engineered for efficiency and reliability, the B&R X20CP1485 is a cutting-edge CPU control unit designed to handle even the most demanding industrial automation tasks. Its Intel x86-based architecture ensures compatibility with a wide range of applications, while its 100 MHz processor speed guarantees swift and precise operation.

    This modular unit offers an array of onboard interfaces including Ethernet, POWERLINK, and USB, providing versatile connectivity options that facilitate seamless integration into existing systems. With an additional slot for modular interface expansion, users can customize their setup according to specific needs.

    Featuring compactFlash as a removable application memory, the X20CP1485 ensures flexibility and ease of use, allowing for quick updates without downtime. The fanless design not only enhances cooling efficiency but also ensures quiet operation, ideal for environments where noise reduction is crucial.

    With a maximum input current of 2.2 A, this unit is equipped to handle substantial electrical loads. It operates on a stable 24 VDC supply, ensuring reliable performance across different industrial settings. The inclusion of a POWERLINK interface supports the latest communication protocols, enabling advanced data exchange.

    Incorporating advanced diagnostics, the B&R X20CP1485 includes status indicators for CPU function, overtemperature, Ethernet, POWERLINK, CompactFlash, and battery health. These features provide real-time monitoring, ensuring proactive maintenance and system uptime.
