Description

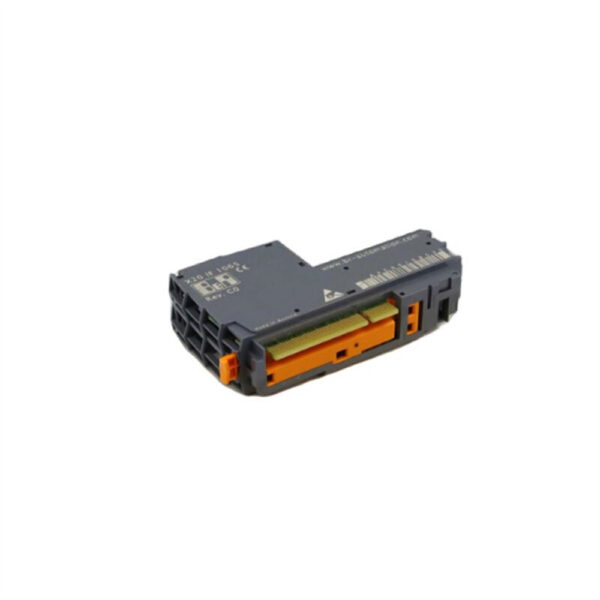

The B&R X20IF1072 is a communication interface module designed specifically for the X20 system by B&R Industrial Automation. It allows you to connect your X20 system to devices using the CAN (Controller Area Network) bus protocol.
Here’s a breakdown of the key features of the B&R X20IF1072 CAN Bus Connection:
- Function: Expands the functionalities of your X20 CPU for specific applications requiring CAN bus communication
- Interface: Provides a single CAN bus interface with a 5-pin multipoint connector . (Note: A separate terminal block, 0TB2105, is needed for connection ).
- Communication Protocol: Supports CANopen protocol for communication on the CAN bus
- Electrical Isolation: The PLC is electrically isolated from the CAN bus for improved safety and noise reduction
- Operating Conditions:
- Ambient temperature range: -25°C to +60°C [-13°F to 140°F]
- Mounting orientation: Horizontal
This module acts like a translator between your X20 system and devices communicating over the CAN bus network. CANopen is a widely used communication protocol specifically designed for industrial automation applications.
Here are some additional points to consider:
- The X20IF1072 includes a built-in terminating resistor, which helps to terminate the CAN bus line and improve signal integrity .
- It does not support CAN Remote Transmission Request (RTR) messages with extended CAN identifiers (29-bit) due to memory and performance limitations .
