Description

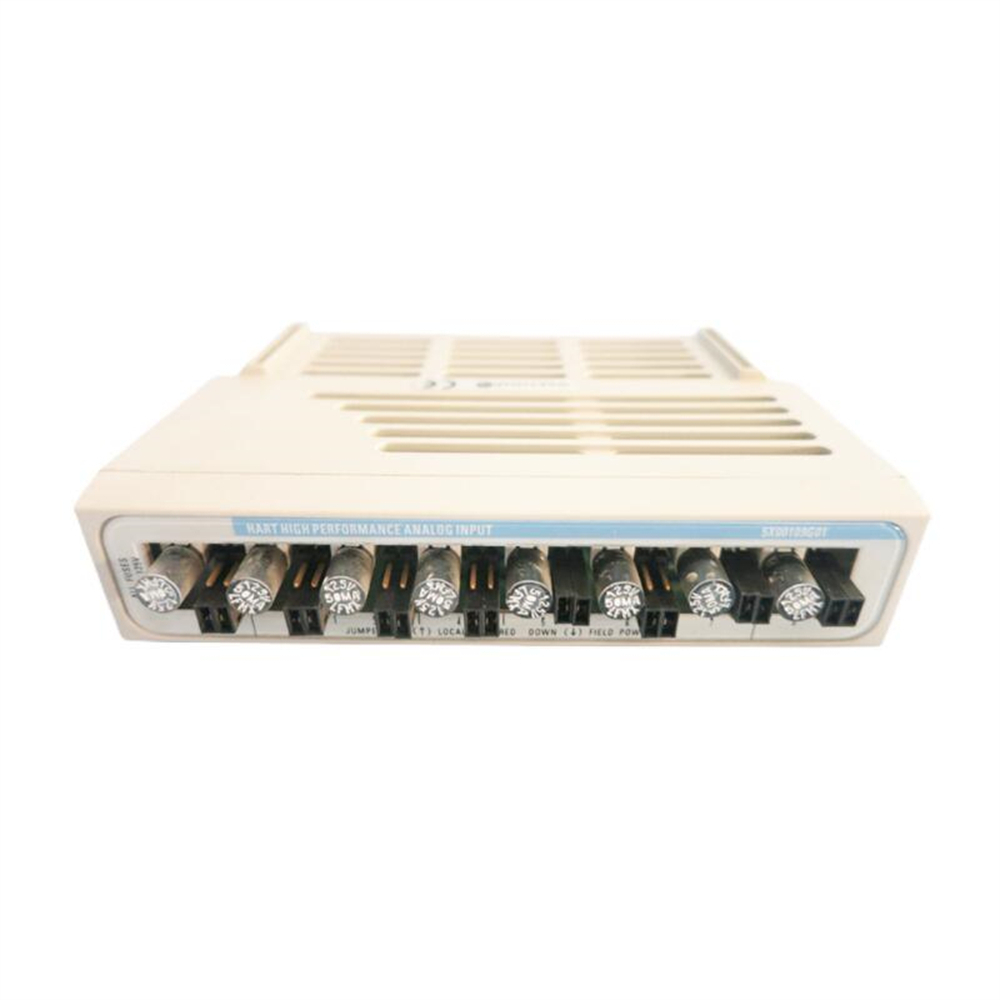

Emerson 5X00109G01

The Emerson 5X00109G01 is an 8-channel analog input module designed for use with the Emerson Ovation™ control system.

The Emerson 5X00109G01 is a versatile analog input module well-suited for demanding industrial applications that require accurate and reliable data acquisition from HART-enabled field devices.



Key features for emerson 5X00109G01:

1. HART protocol support: This allows communication with intelligent field devices that use the HART protocol. HART provides additional data beyond the standard 4-20mA analog signal, enabling more complex measurements and diagnostics.

2. High accuracy: The module boasts an accuracy of ±0.1% of full scale, ensuring precise readings from connected sensors.

3. Low noise: The design minimizes electrical noise, leading to reliable signal transmission.

4. Wide operating temperature range: The module can function in environments ranging from -40°C to +70°C, making it suitable for various industrial applications.



Here are some additional details about the 5X00109G01:

1. Input channels: 8

2. Input range: -40 mA to +40 mA

3. Input impedance: 250 Ω

4. Resolution: 16 bits

5. Update rate: 250 ms

6. Power requirements: 24 VDC, 500 mA

7. Mounting: DIN rail mountable
