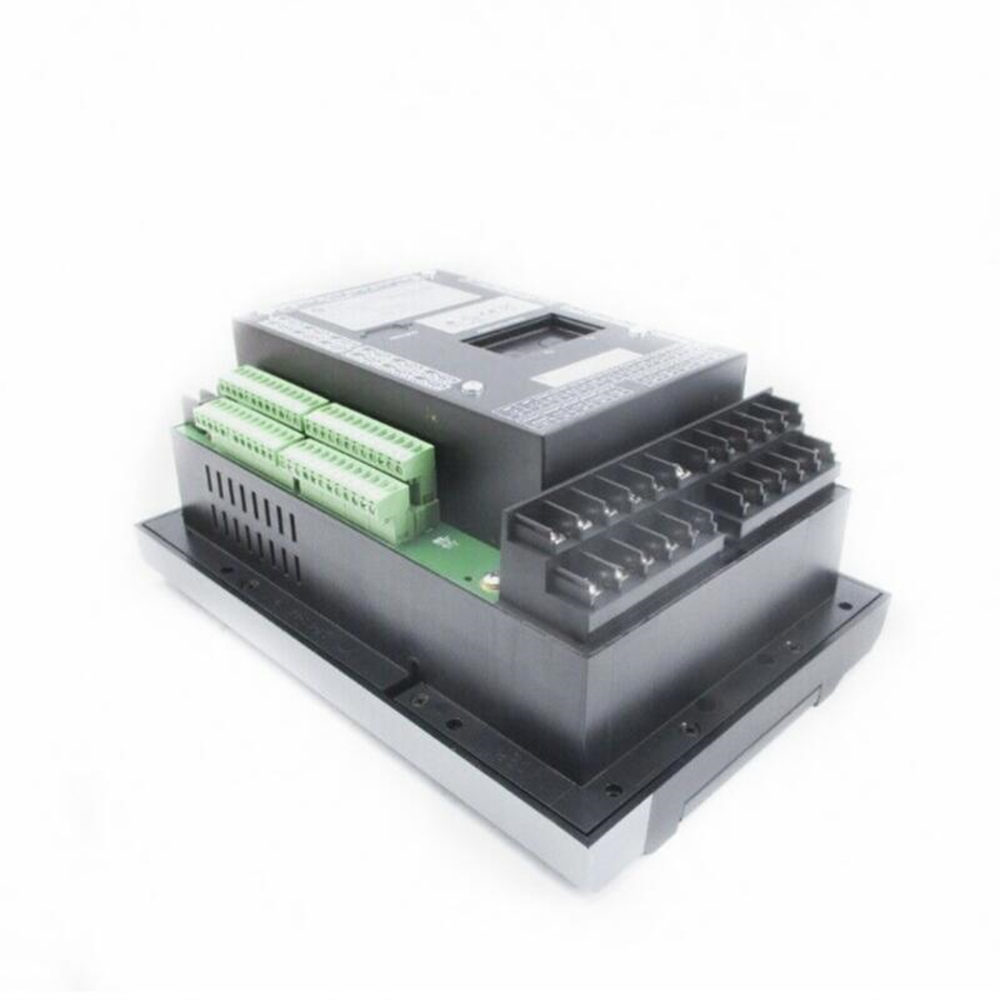

GE 369-HI-R-M-0-0-0-E Motor Management Relay Multilin Digital Relay
GE 369-HI-R-M-0-0-0-E Motor Management Relay Multilin Digital Relay
—————————————————————————————————————————————————————————————————————-
GE 369-HI-R-M-0-0-0-E Product Details Parameters
The GE 369-HI-R-M-0-0-0-E Motor Management Relay Multilin Digital Relay is a comprehensive motor protection and management system designed to protect and control medium-sized AC motors.
It offers a wide range of features, including:
Protective Functions:
1. Overcurrent protection: Protects against excessive motor current due to overload, short circuit, or phase unbalance.
2. Thermal overload protection: Prevents motor overheating by monitoring its temperature and tripping the circuit if it exceeds a setpoint.
3. Ground fault protection: Detects and isolates ground faults to prevent electrical shock or equipment damage.
4. Locked rotor protection: Prevents damage to the motor if it fails to start or becomes locked in place.
5. Phase sequence protection: Ensures correct phase sequence to prevent motor damage.
6. Under-voltage protection: Prevents motor damage if the supply voltage drops below a setpoint.
7. Over-voltage protection: Prevents motor damage if the supply voltage exceeds a setpoint.
Monitoring and Metering Functions:
1. Actual values: Displays real-time values for current, voltage, power, frequency, and temperature.
2. Metering (Option M): Provides comprehensive metering capabilities for energy consumption, demand, and power factor.
3. Pre-trip alarms: Provides early warnings of potential problems to allow for corrective action.
4. Event recorder: Records critical events for analysis and troubleshooting.
5. Oscillography: Captures waveforms for detailed analysis of electrical disturbances.
Communication and Control Functions:
1. Non-isolated RS232 port: Enables communication with other devices for data transfer and control.
2. RS485 port: Enables communication with other devices over longer distances.
3. Modbus RTU protocol: Supports communication with other Modbus-compatible devices.
Additional Features:
1. Differential switch time delay: Ensures coordination with other protective devices.
2. Maximum altitude: 2000 m (max).
3. Operating range: -40°F (-40°C) to +140°F (+60°C).
4. Storage range: -40°F (-40°C) to 176°F (+80°C).
The GE 369-HI-R-M-0-0-0-E Motor Management Relay Multilin Digital Relay is a versatile and reliable solution for protecting and managing medium-sized AC motors. It can help to improve motor efficiency, reduce downtime, and lower maintenance costs.
