Product Details Parameters : GE DS200DCFBG1BKC

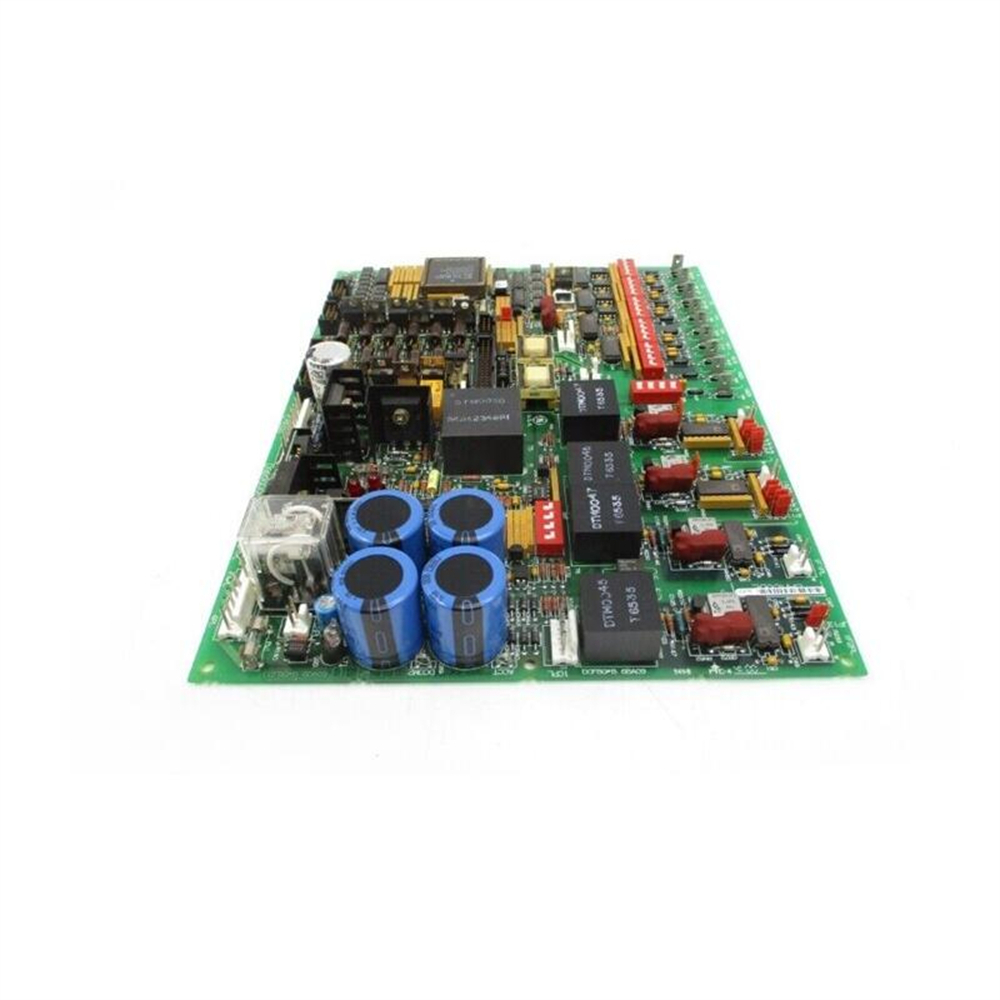

The GE DS200DCFBG1BKC is a power supply board belonging to General Electric’s Mark V Turbine Control System Series. It’s important to note that this is a legacy series, meaning it’s no longer in production.
Here’s a breakdown of what the board does and its key features:
Function:
1. Provides power to various parts of a compatible GE drive system, including the enclosure fan and control level circuits.
2. Compatible with GE’s DC2000, AC2000, FC2000, CB2000, and ME2000 drive systems.
3. Used in control and management systems of automated drive assemblies for steam, gas, and wind turbines.
Features:
1. Converts and regulates incoming AC power to various DC output voltages needed by the control system.
2. Inputs:
①38 VAC from the Control Power Transformer (CPT)
②24 VDC
3. Outputs:
①+24 VDC @ 3 A (primary power source for internal circuitry and external components)
②-24 VDC @ 1 A
③+15 VDC @ 0.8 A (derived from 24 VDC, with 0.25 A for external use)
④+5 VDC @ 4 A (regulated, with monitoring signal for microprocessor reset)
⑤Isolated +5 VDC and 15 VDC supplies for armature current feedback circuits (ensures accurate motor control)
⑥Short circuit protection with fuses
GE DS200DCFBG1BKC Applications:
1. Chemical processing
2. Oil and gas
3. Power generation
4. Pulp and paper
5. Food and beverage
