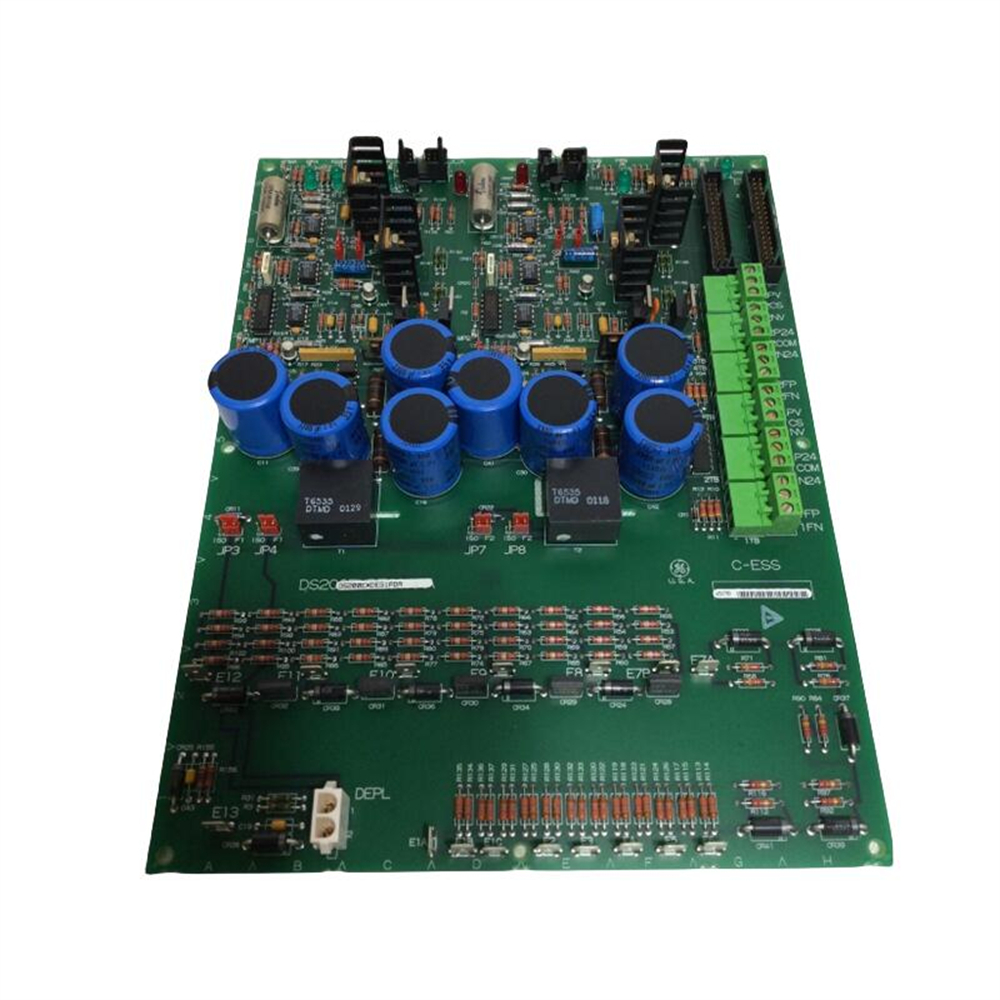

GE DS200EXDEG1A De-Excitation Control Board
The GE DS200EXDEG1A is a Mark V series DE-Excitation Control Board. It is an important part of the Mark V Turbine Control System, which is used to control large steam and gas turbines.
The DS200EXDEG1A is responsible for safely and efficiently de-exciting the generator field during shutdown and fault conditions.
Breakdown of the GE DS200EXDEG1A:
1. Function: Controls the de-excitation process in a turbine generator. De-excitation means reducing the generator’s magnetic field to a safe level during shutdown or fault conditions.
2. Mark V Series: The DS200EXDEG1A is specifically designed for the Mark V series of turbine control systems from GE.
3. Components: The board has various electrical components including:
①Connectors: 2 x 34-pin connectors and 2 x 10-pin connectors for making connections with other parts of the system.
②LEDs: 5 indicator LEDs that light up to show the board’s operational status.
③Capacitors: 8 capacitors that store electrical energy and discharge it when needed for de-excitation.
④Heatsinks: These are present to dissipate heat generated by the board’s components and prevent overheating.
GE DS200EXDEG1A Applications:
1. Chemical processing
2. Oil and gas
3. Power generation
4. Pulp and paper
5. Food and beverage
