Description
The IS200EPDMG1B is powered by one or two 120 V ac inputs in addition to the station battery’s 125 V dc output. It has a board-mounted terminal block that serves as the entry point for all power supply inputs and filters them. An external AC to DC converter rectifies each ac supply to 125 V dc. The resulting two or three dc voltages are connected together using external diodes to provide the P125V and R125V dc source power supplies. These voltages are nominally +62.5 V and -62.5 V to the ground and are center grounded.

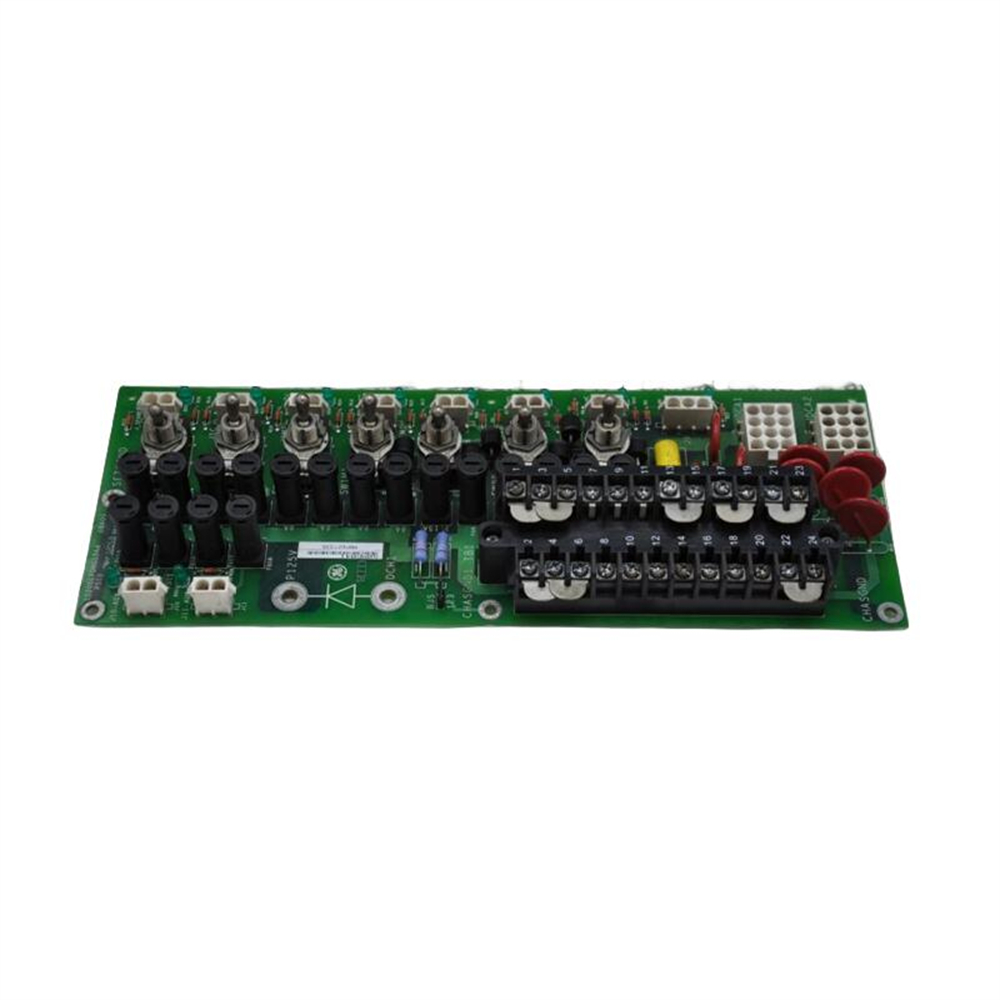

The IS200EPDMG1B has the following features:
- Four mounting holes for safety grounding and chassis grounding
- Two 12-plug connections (JDACA1 and JDACA2) that connect the external DACA#1 and DACA#2 to the terminal block’s AC1 and AC2
- Green LED indicators to show power availability for each individual power supply output
- On/off toggle switches for each individual power supply output
- Fuses for each individual power supply output
- Connectors for distributing power to the Exciter Gate Pulse Amplifier Boards (EGPA), Exciter Terminal Board (EXTB), and Exciter Power Supply Modules (EPSM)
