Description

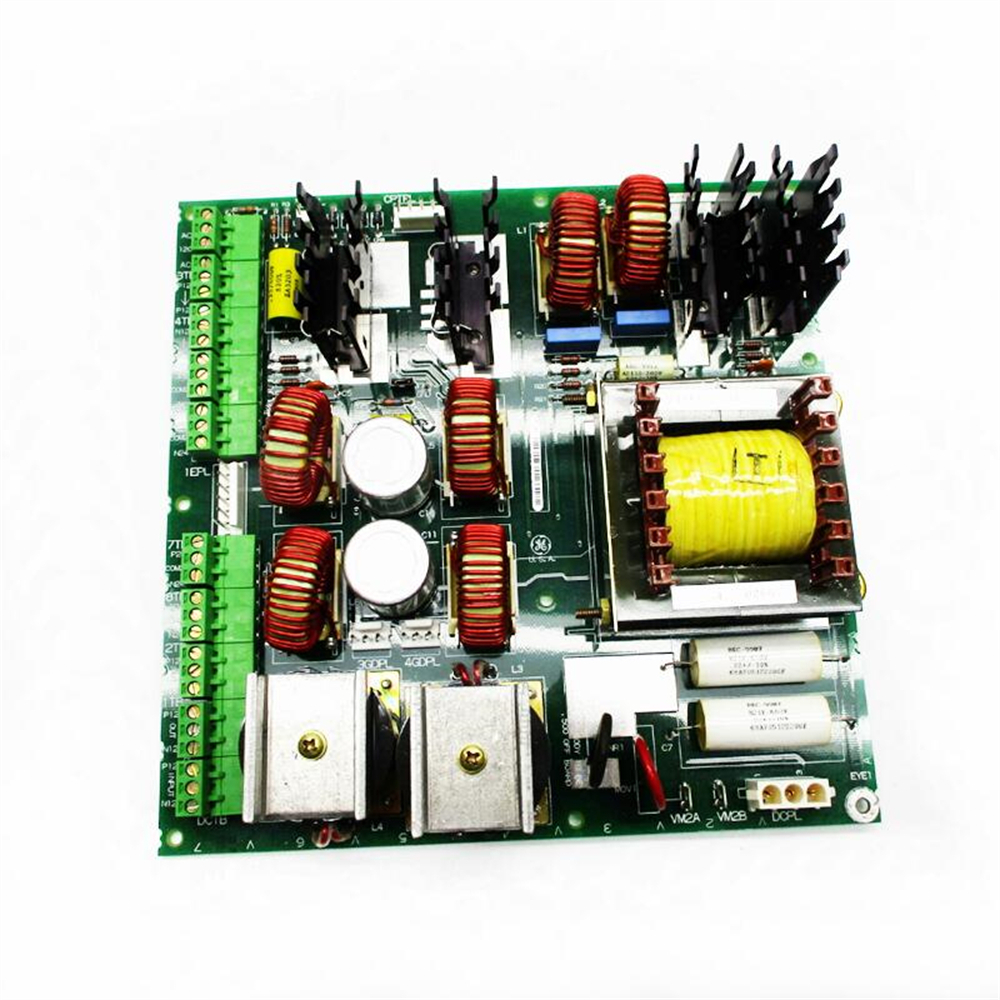

General Electric DS200EVIAG1B Interface Board
The GE DS200EVIAG1B is a Mark V Pickup Interface Board used in protective relaying applications.
It is designed to interface with various types of protective relays and provide a common platform for signal conditioning and processing.
The GE DS200EVIAG1B is a versatile and reliable pickup interface board that is well-suited for a variety of protective relaying applications. It is commonly used in power plants, substations, and other industrial facilities.
Breakdown of the GE DS200EVIAG1B:
1. RTD sensing current: 10 Ω Copper, 120 Ω Nickel, 200 Ω Platinum, and 100 Ω Platinum
2. Surge requirement: Designed to ANSI C37.90.1
3. Series: Mark V
4. Part number: DS200EVIAG1B
5. Direct current maximum voltage: 500-900 Vdc
6. Analog output range: 0…20 mA 0…20000 counts
7. Maximum voltage drop: < 30v 25ma
8. Bus capacitance: 880 µF 600 µF
9. Operating temperature range: Cooling water -40°C ..+80°C
10. Maximum power consumption: 5 W
11. Absolute accuracy error: +/- 0.2% full scale at 77°F (25°C)
GE DS200EVIAG1B Applications:
1. Chemical processing
2. Oil and gas
3. Power generation
4. Pulp and paper
5. Food and beverage
