Description

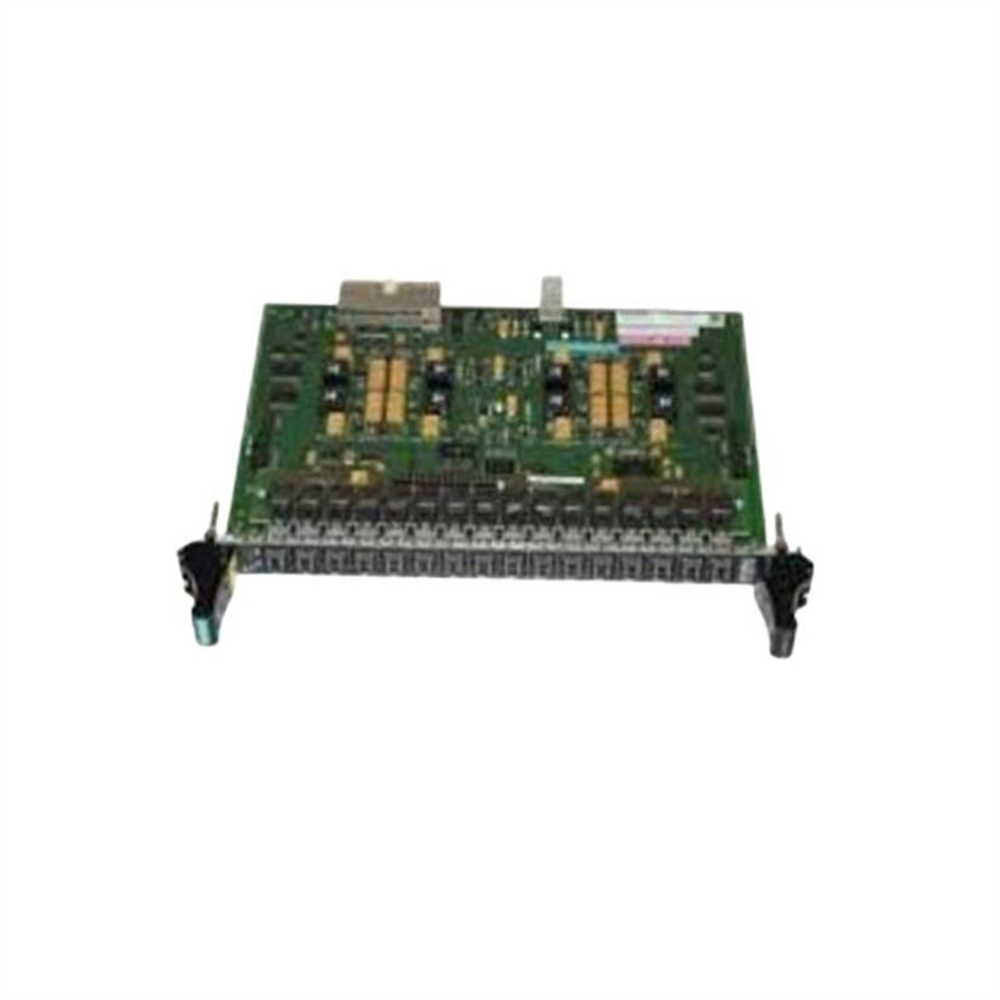

General Electric DS200FCGDH1 Gate Distribution and Status Card
The General Electric DS200FCGDH1 is a circuit board specifically designed for GE’s Mark V series turbine control systems.
It functions as a gate distribution and status card (FGCD) within the system.
Breakdown of the GE DS200FCGDH1:
1. Function: It acts as an interface between the Digital Signal Processing Card (DSPC) and the six-pulse, phase-controlled inverter bridge. The DSPC transmits information to the DS200FCGDH1, which interprets it and generates control signals based on system diagnostics and feedback.
2. Mark V Series Compatibility: This board is compatible with various GE drives within the Mark V series. It integrates with the system’s VME backplane for communication.
GE DS200FCGDH1 Applications:
1. Chemical processing
2. Oil and gas
3. Power generation
4. Pulp and paper
5. Food and beverage
1.About new and used product descriptions:
We guarantee that all products are 100% normal before shipment.
The new parts will use the original packaging.
Some second-hand products may have obvious scratches on the surface.
Second hand products will undergo strict testing before shipment.
Inventory will change periodically, please contact us before purchasing!
2.Regarding pre-sales and after-sales service
We not only sell products, but also provide a complete set of pre-sales and after-sales value-added services, enabling our customers to maintain low technology ownership costs and achieve the highest investment return throughout the entire technology product lifecycle.
3.Excellent team
When customers purchase products or solutions, they hope to receive fast and competitive price quotations, guarantee quality and delivery time, and the best warranty and financial terms. Our team has sufficient knowledge and resources to meet the series of wishes of our clients.
