Description
Operating Range:0-100 bar
Accuracy:+/- 1% FS
Repeatability:0.1% FS
Response Time:≤ 0.5 s
Switch Points:Adjustable between 0.5% to 99.5% FS
Environmental Temperature:-25°C to +70°C
Power Consumption:≤ 3 W
Relay Contacts:1 Form A, 1 Form B
Operating Voltage:12 VDC to 30 VDC
Operating Current:≤ 50 mA
Reliability Rating:MTBF > 50,000 hours
Material:Stainless Steel 316L
IP Rating:IP65
Mounting:Panel Mount, IP65 Rated
Dimensions:25 x 125 mm
Weight:Approx. 50 g

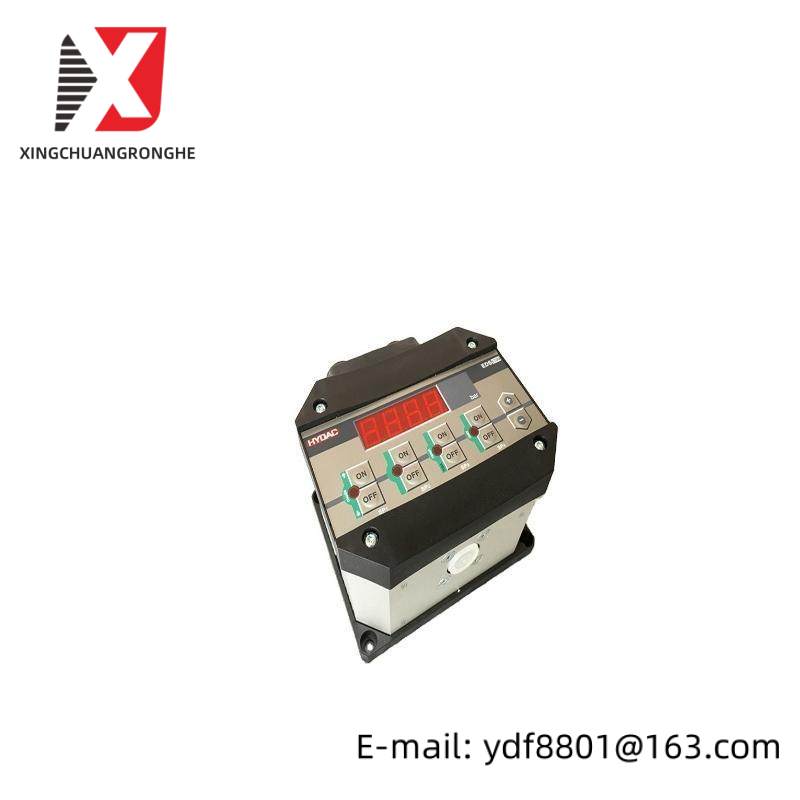

The Hydac EDS1791-N-016-000 Electronic Pressure Switch is designed for high precision and reliability in industrial applications. Its compact design and robust materials make it suitable for a wide range of environments, ensuring long-lasting performance even under challenging conditions.
Equipped with adjustable switching delays and minimized switching forces, this pressure switch provides a seamless integration into various control systems without compromising on accuracy or efficiency. It features up to three customizable switching points, allowing users to tailor the device to their specific operational needs.
With an operating range from 0 to 16 bar and an accuracy of +/- 1% Full Scale, the Hydac EDS1791-N-016-000 ensures dependable monitoring and control of hydraulic and pneumatic systems. Its IP65 rating guarantees protection against dust and light water ingress, ensuring reliable operation in industrial settings.
The relay output in a Normally Open configuration simplifies system integration, making it easy to connect to existing circuits and control mechanisms. The power supply is flexible, accommodating voltages between 12 and 36 V DC, providing versatility for various applications.
Engineered for durability and ease of maintenance, the Hydac EDS1791-N-016-000 is constructed from stainless steel, offering excellent corrosion resistance and mechanical strength. Its 1/4 inch NPT process connection ensures compatibility with standard industrial piping systems.
