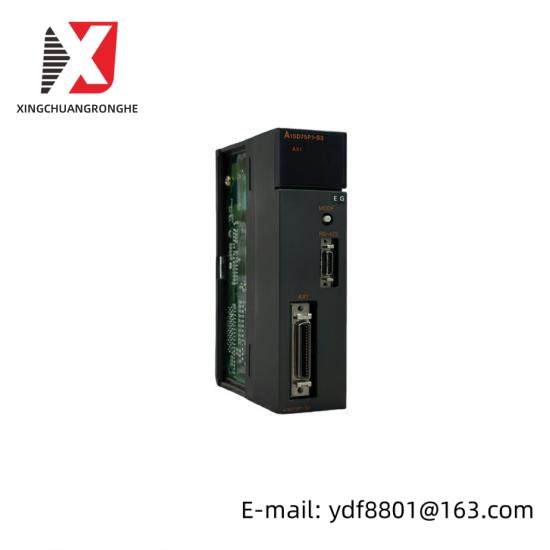

Mitsubishi A1SD75P1-S3 Precision Positioning Module

Description

Model:A1SD75P1-S3

Brand:Mitsubishi

Module Type:Positioning Module

Operating Voltage:24VDC

Current Rating:3A

Communication Interface:RS-485

Control Modes:[“PTP”,”Path”,”Speed”,”Speed-Position Switching”]

Interpolation:Linear, Circular, Helical

Axis Support:Up to 4 Axes

Pulse Rate:200kHz

Mounting Mode:Backplane/Rack

Power Consumption:2.8W

    The Mitsubishi A1SD75P1-S3 Precision Automation Module boasts an innovative design optimized for high-precision applications in various industries, including manufacturing, robotics, and automation. It seamlessly integrates with MELSEC iQ-R Series control systems, providing unparalleled control over robotic movements.

    Engineered with precision, this module supports up to four axes, enabling complex motion sequences with accuracy exceeding industry standards. Its advanced control modes – PTP, Path, Speed, and Speed-Position Switching – offer unmatched flexibility for different application requirements.

    Featuring linear, circular, and helical interpolation capabilities, the A1SD75P1-S3 ensures smooth and efficient movement along specified paths, enhancing productivity and reducing cycle times in manufacturing processes.

    Designed for durability and reliability, this module is built with high-quality materials, ensuring it can withstand harsh industrial environments without compromising performance. It supports a wide range of communication protocols, facilitating seamless integration with existing systems.

    Ease of use is a cornerstone of the A1SD75P1-S3 design. The intuitive interface and user-friendly setup process allow for quick implementation in production lines, minimizing downtime and facilitating smooth operation. With its compact size and versatile mounting options, this module is easily adaptable to various installation scenarios.
