Mitsubishi QD75MH2 Motion Control Positioning Unit

The Mitsubishi QD75MH2 is a precision motion control positioning unit designed for advanced industrial automation applications, offering high accuracy, speed, and reliability.

Description

Model Number:QD75MH2

Type:Positioning Module

Number of Axes:3

Communication Protocol:SSCNET

Connector Type:RJ45

Mounting Mode:Backplane/Rack

Operating Voltage:DC 24V

Max. Pulse Frequency:20,000 pps

Resolution:0.1 μm

Accuracy:+/- 0.01 mm

Repeatability:0.005 mm

Operating Temperature:-10°C to +50°C

Storage Temperature:-20°C to +70°C

    The Mitsubishi QD75MH2 Precision Motion Control Positioning Unit is engineered for high-precision applications in manufacturing and automation industries. Its compact design and robust performance make it suitable for a wide range of tasks, from simple positioning to complex robotic operations.

    Featuring a high-resolution encoder and a proprietary control algorithm, this unit ensures smooth and precise movements, minimizing overshoots and reducing positioning errors. Its SSCNET communication interface allows seamless integration with Mitsubishi PLCs and other compatible systems, facilitating easy setup and operation.

    Manufactured with a conformal coating for chemical resistance, the QD75MH2 is built to withstand harsh industrial environments. It supports up to four axes, enabling versatile applications in machinery, assembly lines, and testing equipment.

    For enhanced reliability and safety, the unit includes overcurrent protection and fault detection mechanisms, ensuring uninterrupted operation even under challenging conditions. Its low power consumption contributes to energy efficiency and cost savings over its operational lifetime.

    Designed with user-friendliness in mind, the Mitsubishi QD75MH2 comes with comprehensive documentation and support resources, making it accessible to both experienced engineers and newcomers to the field of industrial automation.

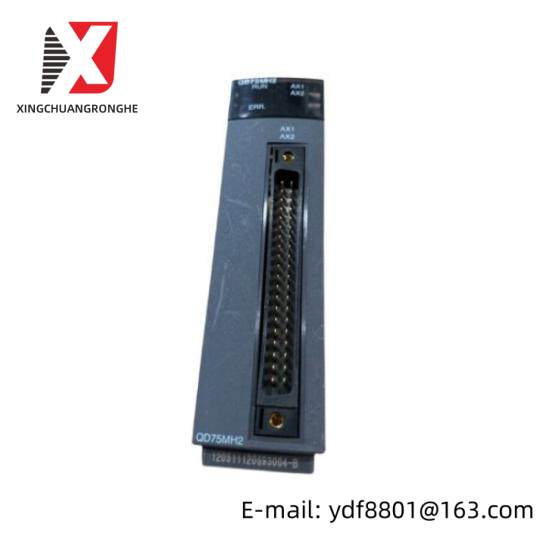

MITSUBISHI QD75MH2 Positioning Unit

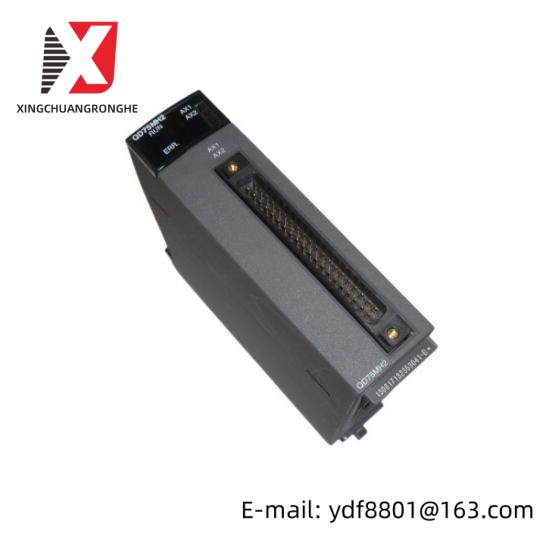

MITSUBISHI QD75MH2 Positioning Unit
