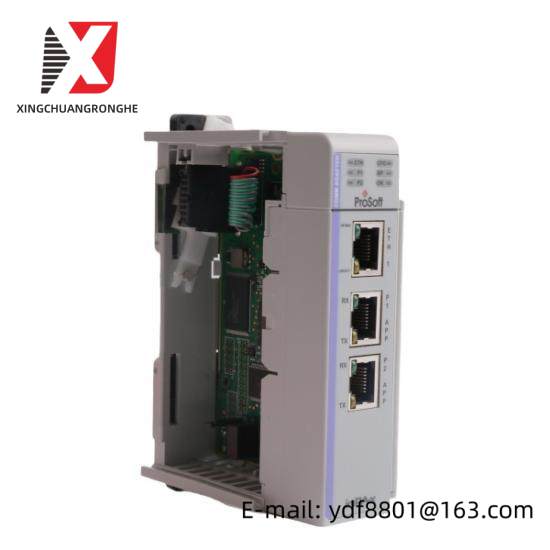

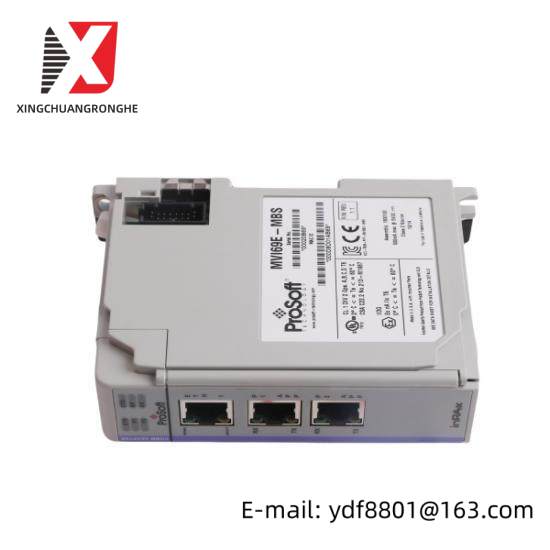

Prosoft MVI69E-MBS ASCII Communication Module, Industrial Control Solutions

Description

Product Type:ASCII

I/O Size:Supports up to 240 16-bit integers

Communication Parameters:{“Baud Rate”:”110 to 115K baud”,”Stop Bits”:”1 or 2″,”Data Size”:”7 or 8 Bits”,”Parity”:”None, Even, Odd”,”RTS Timing Delays”:”O to 65535 milliseconds”}

Floating Point Data:Supports floating point data movement with configurable Enron, Daniel® support

    The Prosoft MVI69E-MBS Communication Module is specifically designed to enhance connectivity and performance in industrial control systems. It supports CompactLogix processors with 1769 I/O bus capability version 16 and above, ensuring compatibility and robustness in a wide range of applications.

    With its add-on instruction feature, users can create User Defined Types (UDTs), offering logical definitions for input/output, status, and control data. This functionality streamlines the integration process within the CompactLogix system, making setup and management more efficient.

    Equipped with a diagnostic data feature accessible through RSLogix 5000 controller tags, this module enables real-time monitoring of node health. Decision-making processes can thus be based on current system conditions, optimizing operational efficiency and predictive maintenance schedules.

    The MVI69E-MBS module is licensed backplane technology, manufactured under a Rockwell Automation license. This ensures high-speed data transfer between the module and the CompactLogix/MicroLogix processor, facilitating faster response times and enhanced system performance.

    Offering a generic 1769 module format, it comes with a sample ladder logic guide to ease installation. The modular design allows for easy integration into existing systems without compromising on functionality. Furthermore, the module supports the Modbus Master/Slave protocol interface, enabling flexible communication with various devices and systems.
