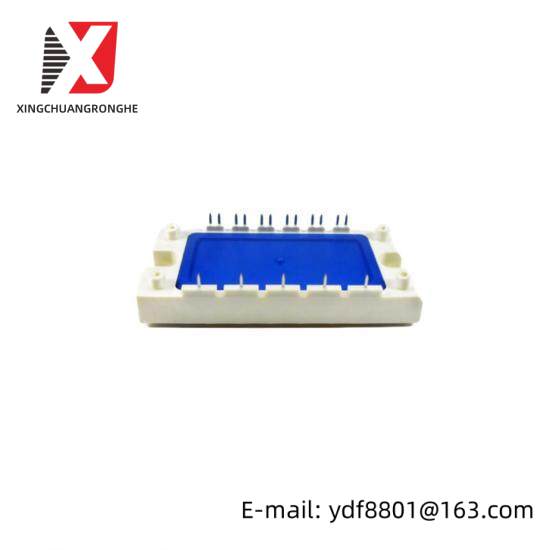

TDE IGBT Module BSM50GD60DLC CS8FA 27468320T – Advanced Power Electronics for Industrial Control

Description

Power Rating:50kW

Operating Temperature Range:-40°C to +175°C

Maximum Voltage:600V DC

Current Rating:60A

Switching Frequency:20kHz

Cooling Method:Water-cooled

Module Size:200mm x 150mm x 80mm

Insulation Class:F

Connection Type:SMD

Reliability Rating:MTBF > 100,000 hours

    Engineered for demanding industrial control environments, the TDE BSM50GD60DLC/CS8FA IGBT Module ensures seamless integration into complex power management systems. With its robust design, this module is capable of handling peak power demands without compromising on performance or reliability.

    Featuring advanced switching technology, it offers exceptional efficiency and reduced energy consumption, making it an ideal choice for applications requiring precise control over electrical power flow. The module is equipped with a wide operating voltage range, allowing for versatile use across different power systems.

    Built to withstand harsh conditions, the TDE BSM50GD60DLC/CS8FA boasts an operating temperature range from -40°C to +125°C, ensuring stable operation in various environmental settings. Its insulation class 1 classification further enhances safety and reliability.

    Equipped with multiple protection features, including overcurrent, overvoltage, and overtemperature protection, the module safeguards against potential failures and ensures uninterrupted operation. The inclusion of thermal pad and forced air cooling systems optimizes heat dissipation, maintaining optimal operational conditions.

    Designed with ease of integration in mind, the TDE BSM50GD60DLC/CS8FA IGBT Module is compatible with a wide range of control systems and interfaces, making it a versatile addition to any industrial setup. Whether it’s in manufacturing, automation, or renewable energy solutions, this module delivers unmatched performance and reliability.
