Description

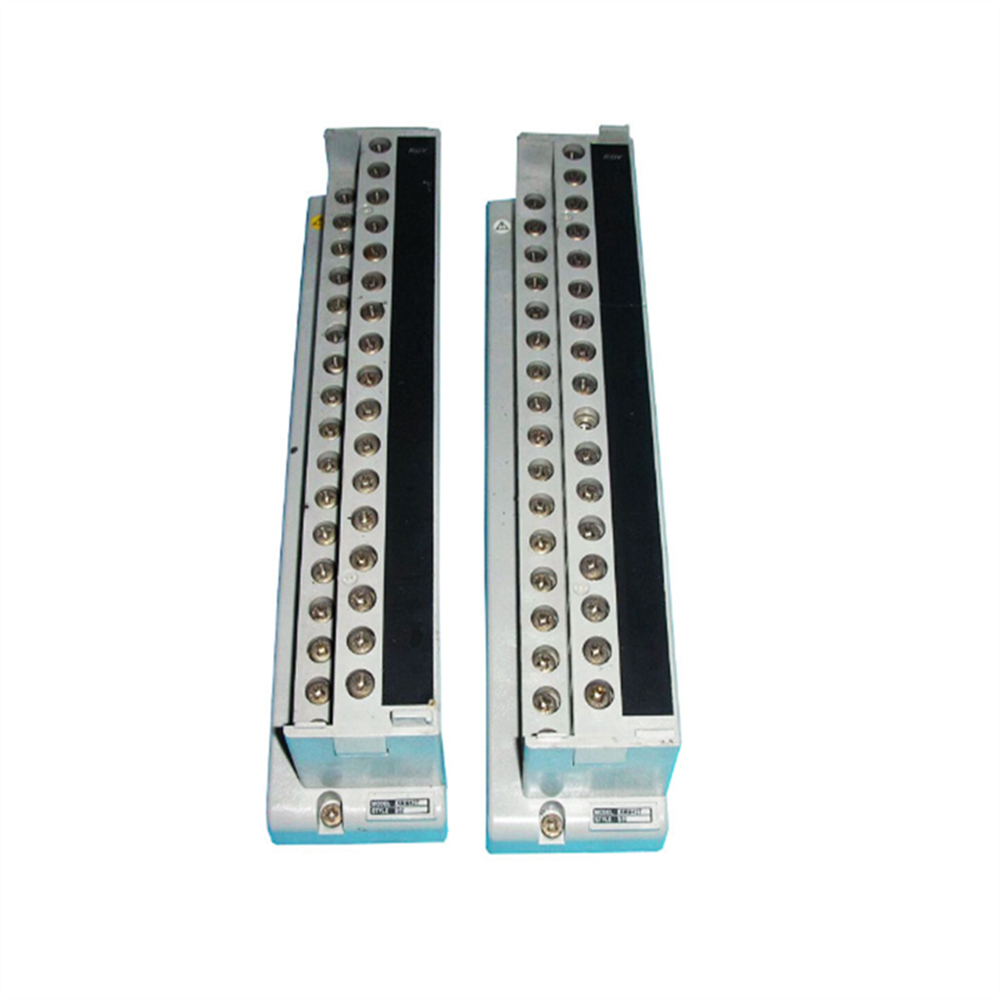

The YOKOGAWA AMM42 is a 2-wire Transmitter Input Multiplexer Module designed for industrial automation applications.
It allows a single module to receive signals from multiple 2-wire transmitters and send a single combined signal to a control system like a PLC (Programmable Logic Controller) or DCS (Distributed Control System).
Here’s a breakdown of the YOKOGAWA AMM42’s key features and functionalities:
Functionality:
- Multiplexing: Connects up to sixteen 2-wire transmitters to a single output channel. This reduces the amount of wiring required compared to connecting each transmitter directly to the control system.
- Signal Transmission: Converts the 4-20mA DC current signal from each transmitter into a single, combined 4-20mA DC current signal representing a weighted average of the individual transmitter readings (depending on scan cycle).
- Data Acquisition: Enables the control system to collect data from multiple transmitters using a single communication channel.
Specifications (based on available information):
- Input Channels: 16
- Output Channel: 1
- Input Signal: 4-20 mA DC current loop
- Output Signal: 4-20 mA DC current loop (weighted average representation)
- Allowable Input Voltage: 40 mA or less
- Transmitter Power Supply: 23.5 to 24.5 V DC (output power limit: 60 mA or less)
- Input Resistance: 250 Ω (can be changed to 70 Ω when connected to a barrier)
Thank you very much for receiving our quotation. We believe you will find that our products and services are worth it.
Please carefully read the quotation content and compare it with other suppliers. If you have any questions or need modifications, please feel free to contact us at any time.
We are always committed to cooperating with customers to achieve mutually satisfactory prices. If you have a target price, or if other suppliers offer lower prices, please let us know.
We will do our best to provide you with the most favorable price.
